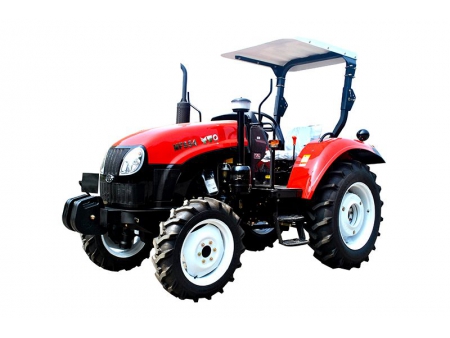

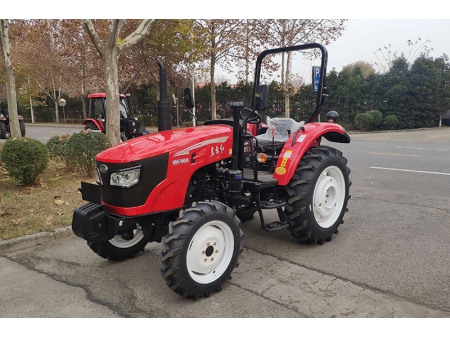

Utility Tractor, 55-60HP
Request a Quote
YTO-EMF554X/EMF604
Features
- The series of tractors feature nice-looking appearance, a spacious cab, adaptability to farm chores, transportation and other heavy-duty tasks;
- The naturally aspirated diesel engine produces high horsepower while consuming less fuel;
- 8F/8R gears enable a wide speed range to suit a variety of needs;
- The final transmission applies a compact structural design with a planetary gear reducer and it is load-balanced and durable;
- The wet disc brake results in reliable and smooth stop;
- The integral front drive axle has a large bearing capacity;
- The dual speed PTO meets various farming needs, such as, rotary tillage;
- We provide optional air conditioner and high-pressure lifter.
- Open station
- Nice-looking appearance
- Spacious and comfortable cab
- Front loader and backhoe
Specifications
| Model (with ROPS) | EMF554X | EMF604 |
| Engine type | Naturally aspirated 4-cylinder diesel engine | |
| Rated engine HP (kW) | 40.5 (55) | 44.1 (60) |
| Engine speed (rpm) | 2200 | |
| Clutch | Independent, double action | |
| Gears | 8F/8R | |
| Speed range (km/h) | 2.74-33.22 | 2.84-34.54 |
| Brake | Wet, disc | |
| Rear PTO (rpm) | 540/1000 | |
| Lift capacity (pivot point) (kN) | ≥12.8 | |
| Hydraulic multiplier (set) | 1 or 2 | |
| Dimensions (L*W*H) (mm) | 3910*1615*2445 | 4180*1745*2570 |
| Wheelbase (mm) | 2092 | 2127 |
| Ground clearance (mm) | 360 | |
| Min. turning radius (m) | 4.5±0.3 | |
| Wheel track (F/R) (mm) | 1320/1400-1600 | |
| Tyre (F/R) | 8.3-20/12.4-28 | 8.3-20/13.6-28 |
| Min. operating mass (kg) | 2380 | 2600 |
