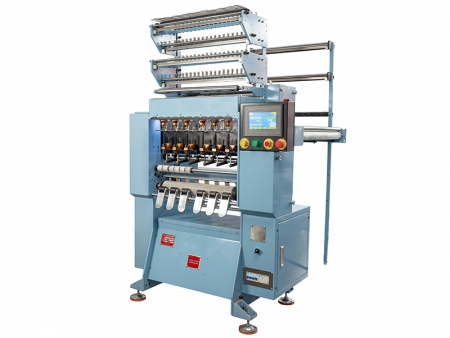

6-Head Cord Knitting Machine
Request a Quote
Application

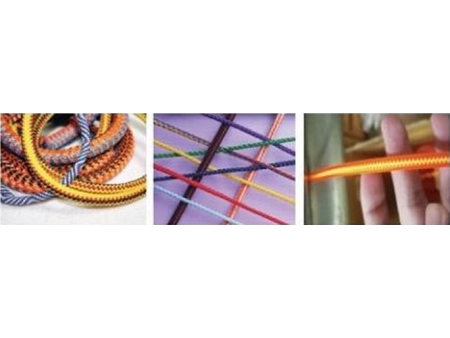

6-head cord knitting machine can produce various types of cords, including:
- Shoelaces
- Drawstrings
- Zipper cords
- Core-spun cords
- Decorative cords
- Blinds cords
- Hammock cords
Features
The specially designed structure allows easy adjustment and ensures high-speed, low-noise operation. It can produce both core-spun cords and hollow cords.
Parameters
| Specification | Machine dimensions: 0.55 m (L) × 1.2 m (W) × 1.7 m (H) |
| Yarn feeding rack: 2.7 m (L) × 1.05 m (W) × 2.5 m (H) (Note: The feeding rack must be fully disassembled for transportation and assembled on-site) | |
| Machine packing size: 0.8 m (L) × 1.4 m (W) × 1.9 m (H) | |
| Feeding rack packing size: 3 m (L) × 1.2 m (W) × 0.4 m (H) | |
| Optional devices | Creel for 200 bobbins (special configuration) × 1 set |
| Finished product collector × 1 set | |
| Yarn collecting device × 1 set | |
| Technical data | Cylinder gauge: 3 / 4 / 6 / 8 / 10 / 12 / 16 GG |
| Speed: 800–1500 rpm | |
| Standard equipment & accessories | Motors (1.5HP): 4 sets (3.8 kW × 2, 1.5 kW × 2) |
| Automatic yarn break stop device × 1 set | |
| Elastic yarn feeding roller × 1 set | |
| Inverter × 1 set | |
| Needle cylinders: 6 sets (CK-06), 10 sets (CK-10) | |
| Latch needles: 200 pcs | |
| Droppers: 200 pcs | |
| Tools: 1 set | |
| Finished product diameter: 1–18 mm |
