Request a Quote
View All: http://ledstrip-lightings.com/5-led-linear-lights.html

Blueview offers different LED linear lights and suspended LED lights for creating beautiful lighting in your office, residence, commercial building, industrial space and so on.

HONG Series LED Linear Light
  • HONG P / M / W is a direct/indirect linear LED lighting fixture offering direct and indirect lighting.
  • Features 95 , 90 or 80 LM80 LEDs
  • White color from 2700K to 6500K
  • Dimmable driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
  • The LED linear fixture is designed in multiple installation in Suspended, Wall / Ceiling Mounted, Trim-less or Trimed Recessed.
  • Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
  • Aluminum clear matt anodized
  • White / black powder coating
  • Customized RAL color available

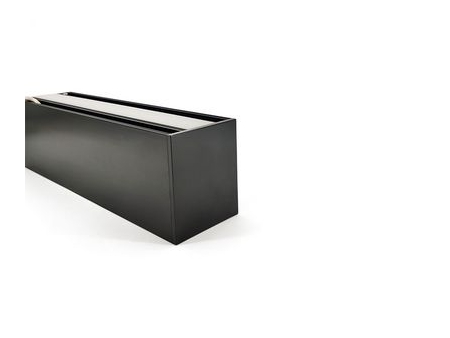

HONG Direct& Indirect Linear Light, UGR <19, 2835 LED, 90 lm/W

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 110°
  • Luminous Flux (lm/m): 4200
  • Power (W/m): 46
  • Efficiency (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

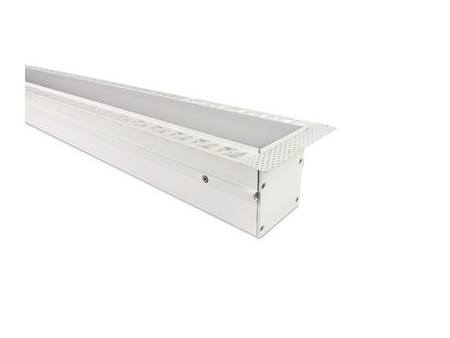

HONG Trimless Recessed Linear Light, 2835 LEDs, 90lm/W

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 110°
  • Luminous Flux (lm/m): 4200
  • Power (W/m): 46
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

HONG Trimmed Recessed Linear Light, UGR < 19, 2835 LEDs, 90 lm/W

  • CCT : 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 110°
  • Luminous Flux (lm/m): 4200
  • Power(W/m): 46
  • Efficacy(lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty
LUZ Series LED Linear Light
  • LUZ P/M/W is a linear LED lighting fixture with internal drivers featuring with various optical options.
  • Hundreds of options available depending on the lighting environments
  • 15° / 30° / 45° / 50° / 50x50° / 35x75° louver / wall washer louver or TRI (Total Internal Reflection) lens are available to satisfy most of the lighting applications
  • Features 80 or 95 Ra LEDs.
  • White color from 2700K to 6500K
  • Dimmable LED driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
  • The fixture can be suspended, or ceiling Mounted.
  • Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
  • Aluminum clear matt anodized
  • White / black powder coating
  • Customized RAL color available

LUZ Surface LED Linear Light, UGR< 19, 2835 LEDs, 90 lm/W

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 88°
  • Luminous Flux (lm/m): 2340
  • Power (W/m): 26
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

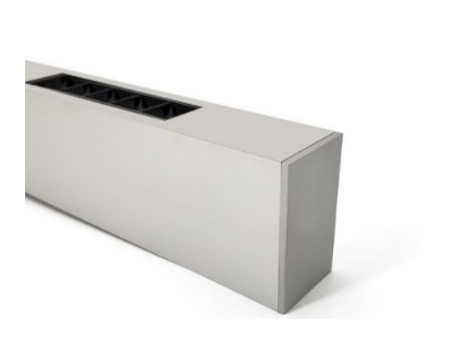

LUZ 15° / 30° / 45° Surface LED Linear Light, 2835 LEDs, 90 lm/W, UGR< 12

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 15°, 35°, 45°
  • Luminous Flux (lm/m): 1430
  • Power (W/m): 19
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

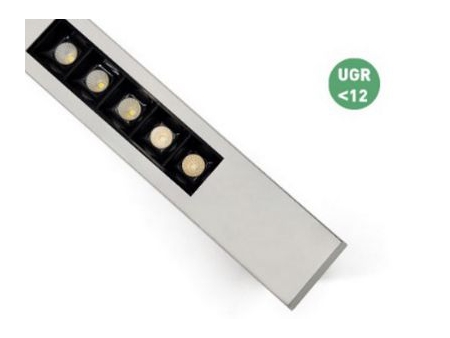

LUZ Wall Washer LED Linear Light, UGR < 12, 2835 LEDs

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: Asymmetric 9°
  • Luminous Flux (lm/m): 1383
  • Power (W/m): 19
  • Efficacy (lm/W): 80
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

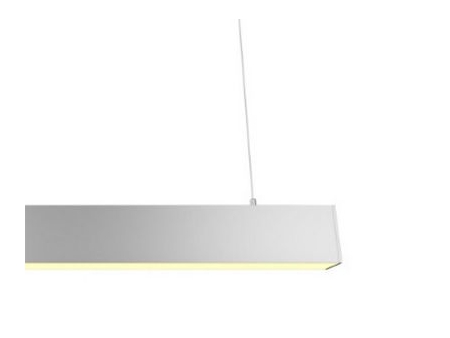

LUZ Series Suspended LED Light, Batwing Optical Lens, 2835 LEDs,90lm/W

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: Asymmetric 9°
  • Luminous Flux (lm/m): 2000
  • Power (W/m): 26
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

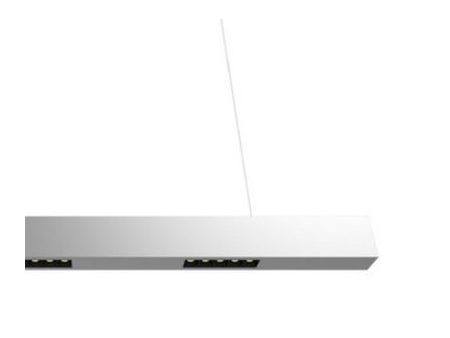

LUZ Suspended LED Light, Asymmetric Optical Lens, 2835 LEDs, 80 lm/W

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: Asymmetric 9°
  • Luminous Flux (lm/m): 1383
  • Power (W/m): 19
  • Efficacy (lm/W): 80
  • Voltage: 220-240 VAC/ 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Suspended LED Light, 60° Optical Lens, 2835 LEDs, 80 lm/W

  • CCT : 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 60°
  • Luminous Flux (lm/m): 1383
  • Power(W/m): 19
  • Efficacy(lm/W): 80
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Suspended LED Light, 90° Optical Lens, 2835 LEDs, 80 lm/W

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 90°
  • Luminous Flux (lm/m): 1383
  • Power (W/m): 19
  • Efficacy (lm/W): 80
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Trimmed Recessed LED Linear Light, UGR<19, 2835 LEDs, 90 lm/W

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 88°
  • Luminous Flux (lm/m): 2340
  • Power (W/m): 26
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Wall Washer Trimmed Recessed Linear Light, 2835 LEDs, 70lm/W

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: Asymmetric 9°
  • Luminous Flux (lm/m): 1384
  • Power (W/m): 19
  • Efficacy (lm/W): 70
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Louver Trimmed Recessed LED Linear Light, 2835 LEDs, 90lm/W

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 15°, 35°, 45°
  • Luminous Flux (lm/m): 1430
  • Power (W/m): 19
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

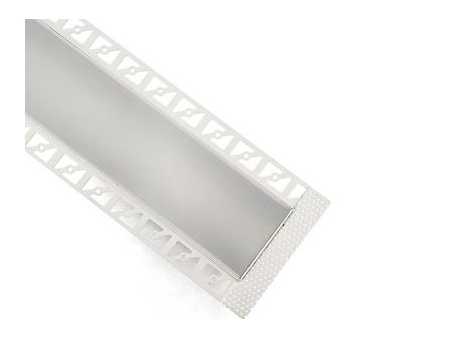

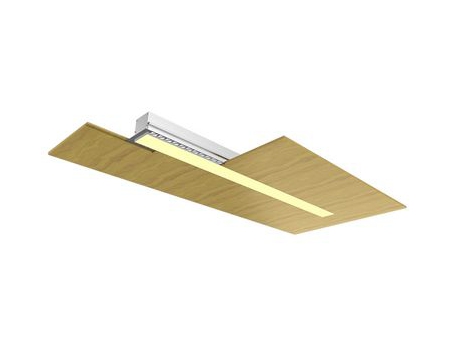

LUZ Trimless Recessed LED Linear Light, 2835 LEDs, 90lm/W

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 88°
  • Luminous Flux (lm/m) : 2430
  • Power (W/m) : 26
  • Efficacy (lm/W) : 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Wall Washer Trimless Recessed LED Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: Asymmetric 9°
  • Luminous Flux (lm/m) 1384
  • Power (W/m) : 19
  • Efficacy (lm/W): 70
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ Louver Trimless Recessed LED Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 15°, 35°, 45°
  • Luminous Flux (lm/m): 1430
  • Power (W/m): 19
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty
SLIM Series LED Linear Light
  • Slim Series P/M is a linear LED lighting fixture with internal drivers featuring with various optical options.
  • Hundreds of options available depending on the lighting environments
  • 15° / 30° / 45° / 50° / 50x50° / 35x75° louver / wall washer louver or TRI (Total Internal Reflection) lens are available to satisfy most of the lighting applications
  • Features 80 or 95 Ra LEDs.
  • White color from 2700K to 6500K
  • Dimmable LED driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
  • The fixture can be suspended, or ceiling Mounted.
  • Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
  • Aluminum clear matt anodized
  • White / black powder coating
  • Customized RAL color available

Slim Series PC Diffuser LED Linear Light

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
  • LED Type: 2835
  • Beam Angle: 110°
  • Luminous Flux (lm/m): 1725
  • Power (W/m): 19
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

LUZ 15° / 30° / 45° Surface LED Linear Light, 2835 LEDs, 90 lm/W,UGR<12

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 50*50°
  • Luminous Flux (lm/m): 1430
  • Power (W/m): 17.5
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

SLIM Series 35X75° Louver Surface Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 37*75 °
  • Luminous Flux (lm/m): 1431
  • Power (W/m): 15
  • Efficacy (lm/W): 95
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

SLIM Series 50° Round In Square Louver Surface Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 50 °
  • Luminous Flux (lm/m): 1431
  • Power (W/m): 15
  • Efficacy (lm/W): 95
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

SLIM Series 50°Round In Diamond Louver Surface Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 50 °
  • Luminous Flux (lm/m): 1431
  • Power (W/m): 15
  • Efficacy (lm/W): 95
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty

SLIM Series 15°/30° / 45° Reflector Louver Surface Linear Light

  • CCT: 3000K, 4000K, 5000K, 6500K
  • LED Type: 2835
  • Beam Angle: 15° 35° 45°
  • Luminous Flux (lm/m): 1431
  • Power (W/m): 17.5
  • Efficacy (lm/W): 90
  • Voltage: 220-240 VAC / 100V-240 VAC
  • IP Rating: IP20
  • 5-Year Warranty
<
