Pin Finned Tube Welding Machine

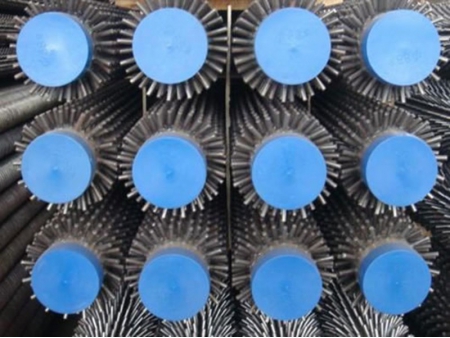

This pin finned tube welding machine employs Siemens SINUMERIK802 control system for easy and simple operation. The pin finned tube welding device is generally used to weld the steel pin to the base pipe for boilers. High automatic, the welding equipment is capable of completing pin feeding (2 heads), welding, indexing, base tube feeding, etc. The pin pitch and angle can be adjusted, freely.
Technical Parameters
- Max. pin finned tube length10m
- Base tube diameterΦ50-219mm
- Pin diameterΦ8-16mm
- Pin length20-50mm
- Min. space between pins (in 360°)25mm
- Indexing accuracy0.01°
- Tube feeding accuracy0.1mm
- Power supply380V, 50Hz/60Hz
- Welding transformer100KVA×2
- Welding electrodes stroke200mm
- Welding electrodes pressure250kgf
- Air source0.4-0.6MPa
- Compressed air consumption0.5m3/min
- Cooling water flow120L/min
- Cooling water pressure0.15-0.3MPa
