Wedge Wire Filter Tube Welding Machine

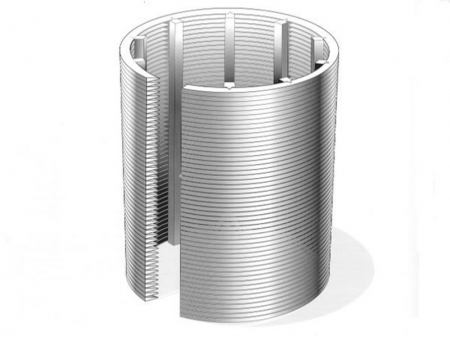

This Wedge Wire Filter Tube Welding Machine is specially-designed for welding filter tubes for any filtering purposes in chemicals, mining, environmental protection, as well as many other industries.
Features
- This machine is of two-axle CNC control and servo motor drive, with high welding precision.
- Two working methods (manual and auto) are available for you to choose from. Under auto method, you just have to input the relative data, and the machine will work automatically.
- Very strong self-diagnose function, can display any mis-operation alarms; Alarming error is showed on the displayer.
Technical Data
- Screen mesh pipe diameter60-600mm (60-1200mm)
- Screen mesh pipe lengthMax. 6000mm
- Wedge wireStainless steel or carbon steel with the diameter of 1.5-5mm
- Slot size0.1-16mm
- Welding precision±0.03mm
- Welding speed6-30rpm
- Arc welding transformer powerAC 200kW
- Driving motor powerServo motor 2kW×3 units
- Tool changing speedWithin 30 minutes
- Machine dimension11m×1.4m×2.5m
- Machine weightAbout 5 tons
Note: Special size can be ordered.
