Automatic Common Mode Choke Assembly Machine
Request a Quote
Model: AM-GMZZ-10
Application: Dispense the core of common mode choke and assemble the upper cover.
Performance and Parameter
| Feeding Mode: | Automatic Feeding (Can be customized to tray feeding, vibration bowl feeding, and other modes according to customer’s requirements) |
| Dislocation Between Magnetic Core and Cover: | ± 0.07mm |
| Machine Capacity: | 2.8-3.6KPCS / H (depending on product size and dispensing time) |
| Applicable Products: | Common Mode Choke (Common Mode Choke Series) |
| Operation Control Mode: | Imported PLC control, intuitive and simple HMI which can meet the requirements of numerical control and humanization. |
| Working Environment: | -5 ℃ ~ 50 ℃ (no corrosive harmful gas, no flying dust and other harsh environments) |
| Machine Size: | L1500 mm* W1400mm*H1750mm |
| Power Supply: | AC220V / 50HZ |
| Air Supply: | 0.4 ~ 0.7MPa |
| Power: | 5.5KW (Including the Power of Industrial Tunnel Oven) |
| Machine Weight: | about 400KG |
| Machine Features: | 1) High versatility, other common mode products can be assembled by change some special parts. Easy to learn and operate. 2) The 8 stations on the turret are driven by direct drive motor. Precise segmentation and positioning. 3) Many choices for feeding modes. Reasonable structure and high use efficiency. |

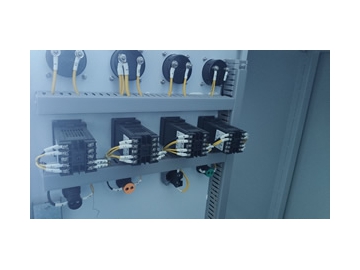

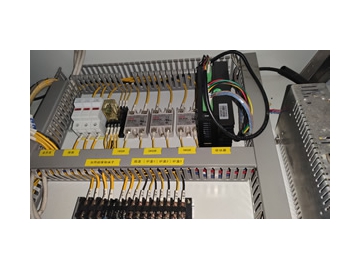

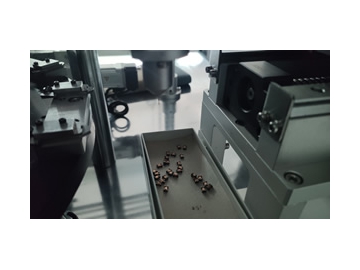

Product Details:
