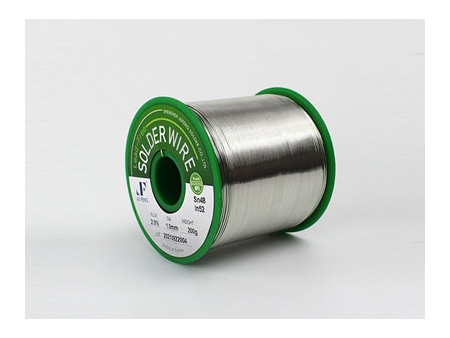

Sn48In52 Indium Solder Wire
Request a Quote
The Sn48In52 Indium Solder Wire features a tin content of 47.5~48.5% and minimal impurities (less than 0.2g). The wire features excellent weldability and oxidation resistance, making ideal for both wave soldering and dip soldering processes. Due to the high purity of the material, it provides outstanding fluidity during the soldering process and is widely used for die-attach applications.
Specifications| Item | Specification | Standard |
| Appearance | Smooth surface, no impurity | |
| Alloy composition | S-Sn48In52 | GB/T 20422-2006 |
| Liquidus temperature | About 118℃ | DSC method |
| Sp. Gr. | 7.31g/cm3 | |
| Tolerance of wire diameter | 0.3-0.8±0.03mm; 0.8-2.5±0.05mm | GB/T 20422-2006 |
| Application | Suitable for welding electronic parts | |
| Package weight | By mutual agreement | GB/T 20422-2006 |
| Preservation method | Must be placed in a dry, non-corrosive environment without sunlight. Warranty for 2 years. |
| Sn | Ag | Cu | Bi | Sb | In | Zn | Pb | Au | Ni |
| 47.5~48.5 | ≤0.10 | ≤0.05 | ≤0.10 | ≤0.10 | Remainder | ≤0.001 | ≤0.10 | ≤0.05 | 0.01 |
| Fe | As | Al | Cd | Total impurity | |||||
| ≤0.02 | ≤0.03 | ≤0.001 | ≤0.002 | ≤0.2 |
| No. | Project | Result | Standard |
| 1 | Tensile test | Qualified | GB/T 28770-2012 |
