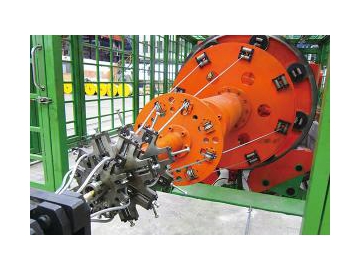

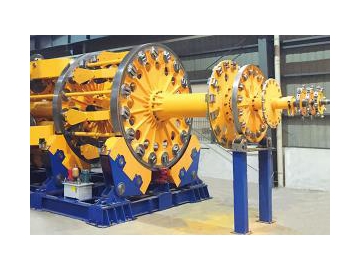

Planetary Wire Stranding Machine
Request a Quote
The planetary stranding machine is a must in the metal product industry. Wire ropes which are made by this equipment can be widely applied in the oilfield, port, shipbuilding, mining, manufacturing and other industries.
Specifications of the Planetary Cage-Type Stranding Machine| NO. | Model | Spool Quantity | Stranding Diameter | Rotating Speed (r/m) | Support Form | |
| Min. | Max. | |||||
| 1 | 500 | (18 18)/(12 18 24) | 8 | 50 | 80 | Roller/Bearing |
| 2 | 630 | 8/18/(18 18)/(12 18 24)/(36 48) | 9 | 70 | 60- 80 | Roller/Bearing |
| 3 | 800 | 8/18/(18 18) | 15 | 80 | 50-80 | Roller/Bearing |
| 4 | 1000 | 8 | 20 | 55 | 60 | Roller |
| 5 | 1250 | 8 | 30 | 80 | 40 | Roller |
| 6 | 1600 | 8 | 40 | 120 | 35 | Roller |
| 7 | 1800 | 8 | 60 | 150 | 30 | Roller |
| 8 | 8/1250 8/630 | 24 | 100 | 30 | Roller | |
| 9 | 12/500 18/500 24/630 | 10 | 60 | 60 | Roller/Bearing | |
P.S.: Customization is available for the types which are not listed above.
