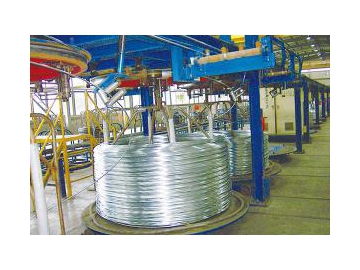

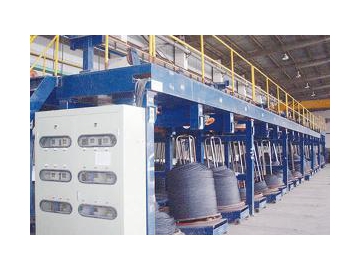

Wire Take-Up Machine

Request a Quote

Website: https://wirerope-en.com/6-1-take-up-machine/index.html

Rotating Capstan Take-ups Life Blocks:

Capstan	mm	400	500	600	700	800	900	1000	1200	1500
Annealed low carbon steel	mm	NO	NO	NO	NO	5~12	5.5~14	6~16	7~18	NO
Annealed and skin passed stainless steel	mm	0.7~2.5	1.0~3.5	1.5~5.5	1.6~7.0	2.0~8.5	2.5~10	NO	NO	NO
Patented high carbon steel	mm	NO	NO	NO	1.8~6.5	3.5~8	5.5~13	6.0~14	7.0~15	NO
Drawn high carbon steel	mm	NO	NO	1.5~4.5	2.0~6	3.5~7	5.0~8	5.5~10	6.0~12	NO
Oil tempered steel	mm	0.4~0.8	0.7~1.6	1.0~2.5	1.5~3.5	2.0~4.0	2.0~5.0	2.2~6	2.5~8	5.5~16
Interaxis "A"	mm	1050	1150	1200	1400	1600	1800	2000	2400	3350
Width "B"	mm	3600	3800	4000	4100	4100	4200	4200	4400	4000
Height "C"	mm	1300 D	1350 D	1400 D	1450 D	1450 D	1500 D	1500 D	1500 D	3100
