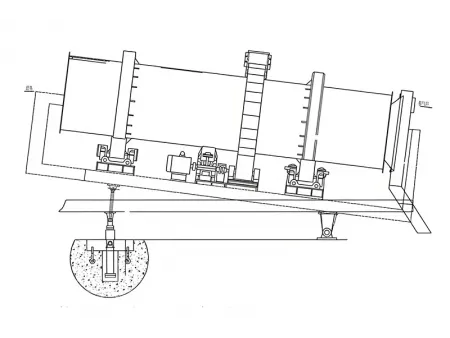

Sulphur/Wax Coating Machine (SCU)
Coating drum for producing slow-release fertilizers by coating particles with sulphur and wax
The sulphur/wax coating machine (SCU) is a specialized device designed to apply a protective layer of sulphur and wax onto fertilizer particles. This coating acts as a protective shield, preventing physical damage during storage and transportation. Additionally, it minimizes the clumping of fertilizer particles, ensuring uniformity and consistency during application. The coating machine is versatile and suitable for a wide range of fertilizers, both granular and powder-based, effectively managing the coating process for different slow release fertilizer formulations.
| Drum size (m) | Drum | Production capacity (t/h) | Reducer | Motor | Dimensions (L×W×H) (mm) | Weight (t) | |||||
| Inner diameter (mm) | Length (mm) | Inclination (°) | Rev. (r/min) | Model | Ratio | Model | Power (kW) | ||||
| 1200 | 3500 | 2.5 | 18.07 | 5 | JZQ500 | 12.5 | Y160M-6 | 7.5 | 3500×3070×2129 | 7.0 | |
| 1400 | 4000 | 2.5 | 15.05 | 8 | JZQ500 | 20.49 | Y160M-4 | 11 | 4400×2810×2600 | 9.0 | |
| 1600 | 6000 | 2 | 12 | 10 | ZQ500 | 12.64 | Y180L-6 | 15 | 6000×3003×3216 | 11.0 | |
| 1800 | 6000 | 2.5 | 11.5 | 17 | ZQ650 | 10.35 | Y180L-6 | 15 | 6000×3375×3750 | 17.0 | |
| 2000 | 7000 | 2.5 | 10.8 | 28 | ZQ650 | 10.35 | Y225M-6 | 30 | 7000×4000×4000 | 25.0 | |
| 2200 | 7000 | 2.5 | 10.85 | 38 | ZQ650 | 12.64 | Y250M-6 | 37 | 7000×4200×4200 | 28.0 | |
| 2400 | 8000 | 2.5 | 9.59 | 45 | ZL75 | 14 | Y250M-4 | 55 | 8000×4400×4400 | 41.0 | |
| 2800 | 10000 | 2 | 8.35 | 60 | ZLY315 | 14 | Y280M-6 | 90 | 10000×4700×4700 | 60.0 | |
- By adjusting the coating's formula and thickness, the nutrient release from the fertilizer is carefully managed, improving crop nutrient absorption at different growth stages.
- The sulphur and wax coating reduces dust and volatile emissions during application, helping to lower the environmental impact. It also minimizes the release of harmful substances, enhancing safety.
- Fertilizers coated with sulphur and wax demonstrate superior quality and performance, making them stand out in the market.
Our sulphur/was coating machine can handle various types of fertilizers, adapting to the specific needs of the production process, ensuring the effectiveness of the coating for both granular and powder materials.
