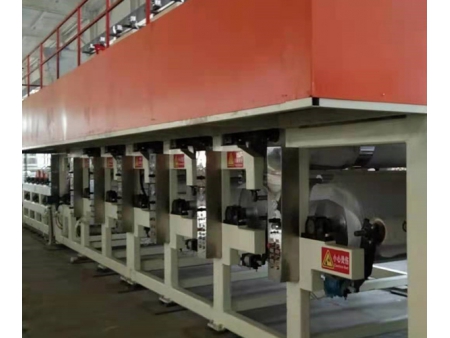

JK-1650 Coating Machine
Request a Quote
- JK-1650 coating machine features high-precision coating technology, high productivity, high levels of energy efficiency, low maintenance and running costs.
Specifications
- Coated Substrate: release paper/film
- Coating Type: water based or oil based
- Max. Coating Speed: 120m/min
- Max. Mechanical Speed: 150m/min
- Guide Roll Diameter: 1650mm
- Max. Unwind Roll Diameter (substrate unwinding): ⌀ 1200mm
- Max. Unwind Roll Diameter (face material unwinding): ⌀ 1000mm
- Max. Rewind Roll Diameter: ⌀ 1000 mm
- Dryer - Design Temperature: 150°C; Operation Temperature: 100-130°C
- Dryer Length: 27m
- Motor Power: 129kW
- Heating method: thermal oil heating
- Web tension range: 0-20kg
- Machine Dimension (LxWxH): approx. 38500x4500x4700mm
Main Configurations
- Substrate unwinding system
- Easy material loading
- Automatic tension detection, precise tension control Face material unwinding system
- Automatic tension detection, precise tension control
- Automatic roll change without machine stop eliminates downtime, greatly enhancing efficiency.
- Dryer: made using 304 stainless steel (interior)
- Rewinding unit: automatic roll change significantly reduces energy consumption and improves efficiency.
Features
- All parameters can be clearly displayed on the touchscreen in a real-time manner, and are allowed to easily set on the touchscreen.
- Automatic tension control system provides precise tension adjustment.
- The coating machine can be configured based on the coating methods, including micro-gravure coating, hard coating, solvent-free coating, UV coating.
- This coating equipment is compact and easy to use.
- Suitable for the production of optical film, insulation film, paint protection film, etc.
