Steel Fiber Making Machine
We have two kinds of steel fiber making machine for producing concrete steel fibers, which are shearing type fiber making machine and drawn steel wire fiber making machine. They are different by the raw material they used.
- Shearing Type Concrete
- Drawn Steel Wire Type
By changing different moulds, this machine can form and cut straight type, twist type, wave type, hook type, sawtooth type, dint type, etc. Its raw materials are usually steel coils or waste steel plates. These fibers usually have more than 800MPa tensile strength.
| Model | Productivity (kg per shift) | Motor power (kW) | Max. fiber length (mm) | Fiber thickness(mm) | Machine weight (kg) |
| 1500 | 4.75 | 100 | 1.5 | 1200 | |
| 700 | 3.75 | 50 | 1.2 | 700 | |
| 400 | 2.75 | 30 | 0.8 | 450 | |
| 300 | 2 | 30 | 0.5 | 450 |
Note: There need a strip slitting machine to slit steel coil or waste steel plates into a certain wide strips for cutting & forming in above machines.

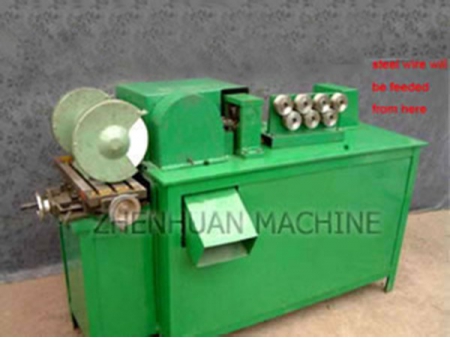

Releasing prestress inside drawn wire and straighten wire, this machine can conduct feeding, forming and cut-to-length. It is also equipped with the grinding device for cutting tools. By changing moulds, different kinds of steel fibers can be made: straight type, hook type, wave type, dint type, etc.
| Code | Productivity (kg / 8 hrs) | Motor power (KW) | Max. length (mm) | Wire diameter (mm) | Machine weight (kg) |
| 1200 | 3 | 80 | 1.5 | 800 | |
| 600 | 2.2 | 60 | 1 | 600 | |
| 250 | 1.5 | 40 | 0.5 | 350 | |
| 150 | 1.1 | 20 | 0.35 | 350 |
