Cotton Swab Making Machine
Request a Quote
Cotton Swab Making Machine
Featuring PLC control system and HMI operation, this cotton swab making machine supports automatic material feeding and rolling. It can be used for automatically making and packing cotton swabs. With proven quality and performance, the machine is equipped with superior quality servo motor, PLC control system and touch screen from XINJIE.

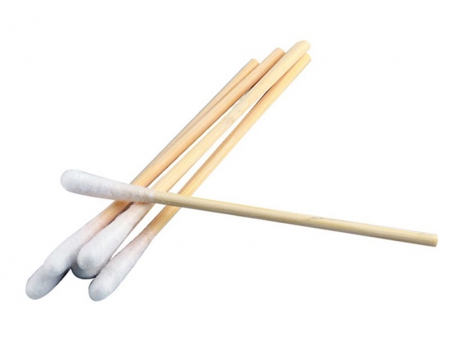

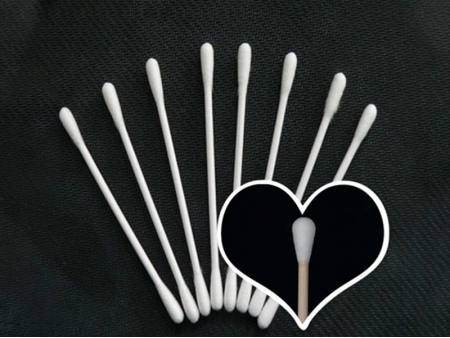

The finished cotton swabs can be packed with different methods, such as square box, plastic bag, blister, round box, etc. The cotton swab making and packaging machine is suitable for producing various cotton swabs with compact and uniform swab head, such as single-head medical swabs, double-head make-up swabs, baby-care swabs, etc.
Technical Parameters
- Applicable stickPlastic, wood, paper and bamboo stick
- Stick lengthCustomized
- Stick diameter2.0-2.5mm
- Production speed (Plastic and paper stick)600-900pcs/min
- Production speed (Bamboo stick)700pcs/min
- Production speed (Wooden stick)700pcs/min
- Rate of spoiled (For plastic & paper sticks)less than 0.3%
- Rate of spoiled (For bamboo & wood sticks)less than 1%
- Machine dimension7200 x 750 x 1300mm
- Machine weightAround 1500kg
- Drying power7kW
- Total power8kW
- Power supply380V, 3Phase, 50Hz
