Extinguisher Cylinder Hot Spinning Machine

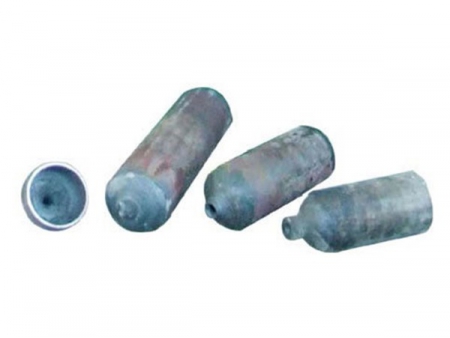

- Our hot spinning machine is capable of processing seamless steel tubes into various cylinders with close-in bottom and neck-in top according to different purposes, such as extinguisher cylinder, gas cylinder, etc.
- This high efficiency equipment is applied with the automatic hydraulic clamping and spinning device (consistent with hot spinning principle).
- Through adjusting the die, the process of closing-in and necking-in will be realized.
- The rear part of cylinder is clamped by the hydraulic cylinder which rotates with the main spindle simultaneously. The whole process is quite stable.
Technical Parameters
- Main spindle rotating speed300-400rpm
- Main motor power15kW
- Hydraulic station motor power5.5kW, 1440rpm
- Hydraulic pressureMax.15MPa
- Clamping force120KN
- Die pushing force50KN
- Max. cylinder diameter108-180mm
- Max. cylinder length1400mm
- Production speed120-450 pieces per shift (8 hours)
- Dimension3400×1450×1000mm
- WeightAbout 7T
