Drier Filter Tube Spinning Machine
- Drier Filter Tube Spinning Machine
- Drier Filter Copper Mesh Filling Machine
- Filter Tube Two-way Forming Machine

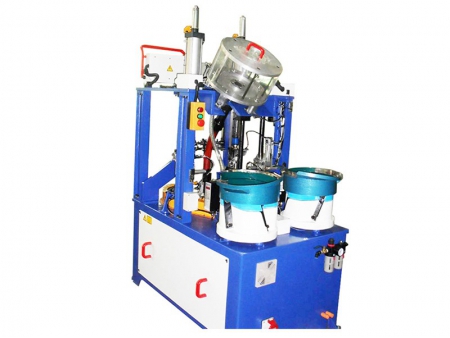

The tube spinning machine is specially designed for closing or necking-in metal tubes for oil storage, muffler and filter drier for air condition, refrigerator, heater, automotive, etc.
- Two axis CNC control, small error, high speed
- Hydraulic system is equipped with water cooling system
- High speed mandrel speed 2800rpm, inverter control, speed adjustable
- Automatic loading, unloading Main Technical Data of Tube Spinning Machine
- Max. tube diameter and wall thicknessΦ30×1mm (or 50×1mm, 80×1mm) (copper)
- Min. tube diameter and wall thicknessΦ8X1mm (copper)
- Max. workpiece length200MM
- Min. workpiece length40MM
- Average working efficiency15s per piece
- Control methodCNC double-axis control
- Loading/unloading methodautomatic
- Driving methodHydraulic pneumatic
- Main spindle motorInverter control speed adjustable
- Total power consumption6.5KW
- Electric power380V 50HZ
- Air source0.5-0.8MPa
- Hydraulic pressure0．5-6MPa
As a professional tube spinning machine supplier in China, we can provide any kind of metal spinning machines for any special purposes!
We can provide complete machines for air conditioner and refrigerator drier filter production:
This drier filter copper mesh filling machine is specially designed for inserting copper mesh and screen and filling drying agent (molecular sieve) in a certain volume to spun drier filter tubes. All actions are fully automatic.
- Suitable copper tube diameterφ16~25mm
- Suitable copper tube length70~165mm
- Filling molecular sieve weight range6~20g
- Molecular sieve filling adjusting range2~4g (without changing counting cup)
- Working productivity4~5 seconds per piece
- Distance between outlet and mesh (L1)0~83mm
- Distance between inlet and mesh (L2)33~133mm
- Re-positioning precision of mesh inserting±0.3mm
- Re-positioning precision of rotating spindle±0.2º

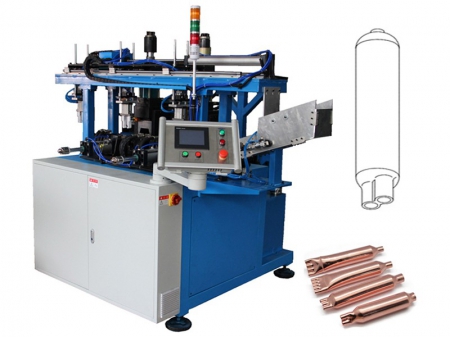

This two-way forming machine is specially designed for forming one end of copper drier filters to be two-way, three-way, or four-way inlet, for connecting capillary tubes.
It is a hydraulic tube end forming machine with automatic loading and unloading function, and servo motor driving manipulators.
Copper tube feeding is achieved by hopper, and manual loading.
This machine is PLC control, HMI operation, fully automatic.
- Suitable copper tube diameterφ16~30mm
- Suitable copper tube length50~165mm
- Working productivity20~30 pcs/min
- Tube mouth deformation ratio< 3%
- Hydraulic station motor power3kW
