Aluminum Busbar Wrap
Request a Quote
SST4566
- Material: Polyester (PET)
- Color: Orange
- Operating Temperature: -40°C to 150°C
- Abrasion Resistance: Grade 6 (>30,000 cycles), based on ISO 6722-1
- Flame Retardancy: Burn rate <100 mm/min (GB/T 2408-2021)
- Thermal Aging: No cracking or degradation (336h @ 175°C)
- Cutting Method: Hot cutting
- Packaging: Plastic bag
Now

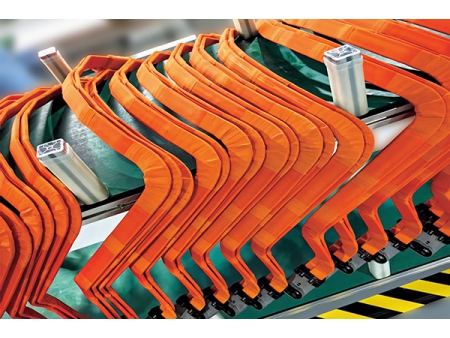

SST4566 series is a square aluminum busbar wrap specifically designed for electric vehicles with a busbar charging system. It is braided from a blend of polyester monofilament and multifilament yarns. The orange color provides clear high-voltage identification, while the construction offers abrasion resistance, corrosion resistance, and easy installation. Customization and the addition of EMI shielding performance are available upon request.
Applications

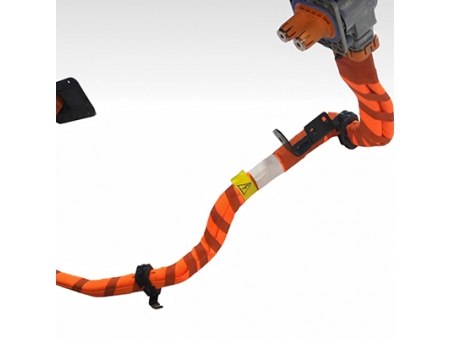

This aluminum busbar wrap is primarily used for insulation and protection of busbars in new energy vehicle (NEV) charging systems.
Certifications
Parameters
| Model | Width (mm) | Height (mm) | Thickness (mm) | Overlap (mm) | Cut Length (mm) |
|---|---|---|---|---|---|
| 32±2 | 7 2/-0 | 0.8±0.2 | >8 | Customized | |
| 32±2 | 14 3/-0 | 0.8±0.2 | >8 | Customized | |
| 40±2 | 8 2/-0 | 0.8±0.2 | >8 | Customized | |
| 32±2 | 18 3/-0 | 0.8±0.2 | >8 | Customized | |
| 38±2 | 14 3/-0 | 0.8±0.2 | >8 | Customized | |
| 38±2 | 18 3/-0 | 0.8±0.2 | >8 | Customized |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
