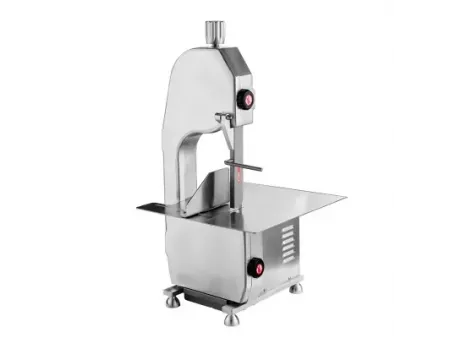

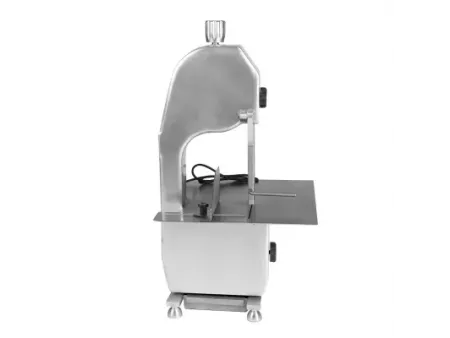

Bone saws are used to portion frozen meat, fish, and hard bones into smaller cuts with better control and a cleaner result. They are often used when large frozen cuts need to be portioned quickly and evenly. When using bone saws, cuts come out clean and even, so there’s less trimming and less product wasted when portioning.

Their wider worktable supports larger ingredients, which allows bigger pieces to be cut directly without pre-cutting into smaller sections. The bone saw's body is made with high-strength stainless steel to ensure resistance to corrosion and wear in humid, greasy kitchen environments. They are available in different configurations, with saw blade lengths from 1650 to 2400 mm and power options from 750 W to 2.2 kW.

Leave a Message
Applications

Bone saws are commonly used in restaurant kitchens, meat processing plants, supermarket fresh-food sections, and food factories. They are suitable’ for efficient cutting and portioning work across different types of ingredients in daily production.

Before cutting
During cutting
Product Details
  • E-stop button & feet
  • Saw assembly
  • Safety guard handle
Specifications
Model HLS1650A HLS1900A HLS2020 HLS2400
Voltage 230/110V 230/380V 380V 380V
Power 750W 750W/1100W 1.5KW 2.2KW
Saw Wheel Diameter 211mm 230mm 250mm 300mm
Saw Blade Length 1660mm 1908mm 2020mm 2400mm
Saw Blade Material Al-Mg alloy Al-Mg alloy High carbon steel High carbon steel
Saw Blade Linear Speed 16m/s 16.85m/s 18.8m/s 22.6m/s
Blade Tooth Configuration (for Frozen Fish Cutting) 3 teeth per inch 3 teeth per inch 3 teeth per inch 3 teeth per inch
Blade Tooth Configuration (for Frozen Meat Cutting) 4 teeth per inch 4 teeth per inch 4 teeth per inch 4 teeth per inch
Blade Tooth Configuration (for Frozen Bone Cutting) 6 teeth per inch 6 teeth per inch 6 teeth per inch 6 teeth per inch
Motor Speed (rpm) 1440r/min 1440r/min 1440r/min 1440r/min
Table Size (L×W×D) 440×465×3(mm) 542×531×3(mm) 565×668×3(mm) 767×738×4(mm)
Max. Cutting Height 245mm 240mm 304mm 355mm
Max. Cutting Thickness 175.5mm 190mm 202mm 252mm
Net Weight 36.2kg 42.6kg 120.4kg 141kg
Gross Weight 52.8kg 58kg 154.6kg 185.5kg
Dimensions 468×465×876mm 565.5×531×1011.5mm 596×674×1585mm 801×743×1732mm
Packing Size 550×520×1020mm 646×623×1152mm 670×745×1600mm 875×820×1735mm
