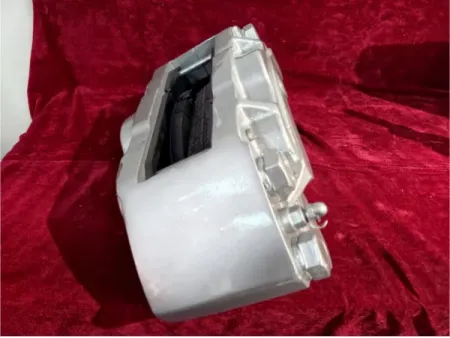

Disc Brake
Request a Quote
FY70Q
FY70Q Disc Brake Technical Specifications
| Model | FY70Q |
| Caliper Material | High-strength Vermicular Graphite Cast Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 6×75 |
| Max. Oil Pressure (MPa) | 13 |
| Friction Coefficient | 0.35 |
| Pad Thickness (mm) | 15 |
| Max. Pad Wear (mm) | 13 |
| Brake Disc Thickness(mm) | 36 |
| Brake Disc Diameter(mm) | 500 |
| Effective Radius(mm) | 213 |
| Weight(kg) | 43.5 |
| Installation | 3 o’clock or 9 o’clock position |
| Hydraulic Medium | Mineral Oil or Synthetic Brake Fluid |
Note: When the braking oil pressure exceeds 13 MPa, please contact our engineers for customized development services.
