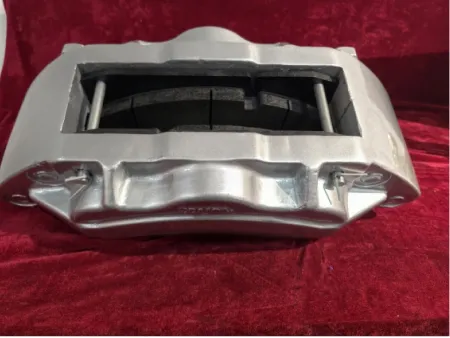

Disc Brake
Request a Quote
FY-DP152.00
FY-DP152.00 Disc Brake Technical Specifications
| Model | FY-DP152.00 |
| Caliper Material | High-strength Ductile Iron |
| Brake Type | Spring Applied, Hydraulic Released (SAHR) |
| Braking Torque | ≥1200 N.m |
| Released Oil Pressure | 2～5 MPa |
| Release Volume | 11 cm3 |
| Max. Rotation Speed(rpm) | 300 rpm |
| Max. Working Temperature (℃) | 85℃ |
| Working Medium | Hydraulic Oil |
| Weight | 15 KG |
| rake Drum/Disc Diameter Range | φ250~ φ600 mm |
| Brake Drum/Disc Width | 45 mm |
Note: Customized services and engineering support are available when the hydraulic medium or pressure requirements change.
