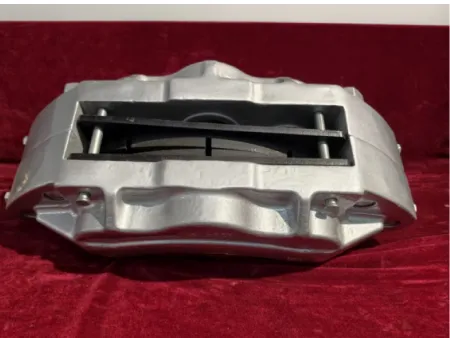

Hydraulic Brake
Request a Quote
FY95
FY95 Hydraulic Brake Technical Specifications
| Model | FY95 |
| Caliper Material | High-strength Ductile Iron |
| Brake Type | Fixed, Normally Open, Hydraulic Brake |
| Caliper Material | High-strength Vermicular Graphite Cast Iron |
| Max. Oil Pressure (MPa) | 21 |
| Lining Material / Friction Coefficient | Asbestos-free /μ≥0.36 |
| Friction Area per Pad (CM2) | 658 |
| Friction Volume per Pad (CM3) | 1704 |
| Hydraulic Medium | Mineral Hydraulic Oil |
| Brake Disc Thickness(mm) | 31.75 |
| Disc Diameter Range (mm) | 482～1320 |
| Displacement per 1mm Stroke(ml) | 42.5 |
| Number of Pistons | 6 |
| Theoretical Braking Torque (N.m ) | T=15.3*P*(D/2-50.8) |
| Formula Notes | P: Working Pressure (MPa); D: Disc Diameter (mm) |
| Weight(kg) | 99.8 |
| Rim Specification (inch) | 49～51 |
Note: When the braking oil pressure exceeds 21 MPa, please contact our engineers. We provide customized services based on your specific requirements, parameters, and applications.
