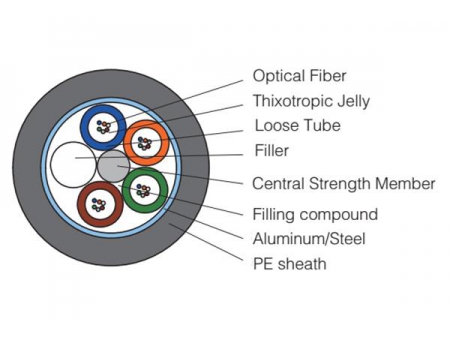

Stranded Optical Fiber Cable GYTY53

Request a Quote

Website: https://wirerope-en.com/layer-stranded-optical-cable-2/index.html

Product performance

Fiber count		2~36	38~72	74~84	86~96	98~108	110~120	122~132	134~144
CSM/Steel wire (mm)		--/1.8	--/2.2	3.0/2.2	3.6/2.2	4.2/2.2	4.8/2.2	5.6/2.2	6.3/2.2
Element number		6	6	7	8	9	10	11	12
Max. cores in tube		6	12	12	12	12	12	12	12
Cable diameter (mm)		11.8	12.8	13.8	14.4	15	15.6	16.6	17.3
Weight (kg/km)		157	190	214	230	245	261	289	311
Tensile strength （N）	long term	1000
	short term	3000
Crush Resistance (N/100mm)	long term	1000
	long term	3000
Bending Radius （mm）	dynamic	≥12.5×Cable diameter
	static	≥25×Cable diameter
Operating Temperature (℃)		-40 -- 60
Application		Aerial, duct, direct burial
