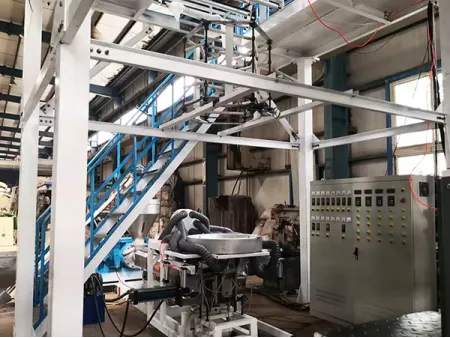

Blown Film Machine (Monolayer PVC Film)
Monolayer blown film extrusion system for producing 0.012-0.06mm PVC packaging and agricultural films with 15% energy saving
The monolayer PVC blown film machine is a specialized solution for efficient production of high-quality PVC films. Based on a high-efficiency extrusion system and precision forming technology, the equipment is well suited for packaging, agricultural, and industrial applications.
Through coordinated operation of the screw and barrel, raw materials are rapidly plasticized. Combined with a precision die head and high-performance air ring, the system ensures stable film bubble formation, uniform film thickness, and consistent mechanical performance.
The production line features a high level of automation and can be operated by 1-2 operators, significantly reducing labor costs. It supports production of PVC films with widths of 1200-1400mm and is widely used for packaging films, agricultural covering films, and industrial protective films. With optimized energy management, the system delivers an overall energy saving of approximately 15%, providing a stable and cost-effective production solution.
-
PVC packaging film
Film thickness 0.012-0.06mm, thickness deviation ≤ 3% -
PVC agricultural covering film
Transverse shrinkage≥45%, longitudinal shrinkage≥45% -
PVC industrial protective film
Tensile strength≥15MPa
Product parameters
| Item | Specification |
| Film width | 1200-1400mm |
| Film thickness | 0.012-0.06mm |
| Transverse shrinkage | ≥45% |
| Longitudinal shrinkage | ≥45% |
| Tensile strength | ≥15MPa |
| Transparency | ≥85% (standard PVC film) |
| Operating temperature range | -10-60℃ |
Equipment parameters
| Item | Specification |
| Screw diameter | 100mm |
| Screw L/D ratio | 28:1 |
| Screw speed | 0-50rpm |
| Drive power | 55kW |
| Barrel heater power | 32kW |
| Die diameter | Ø120mm |
| Die heater power | 2kW |
| Haul-off roller width | 1200/1600mm |
| Haul-off speed | 0-60m/min |
| Output | 90-120kg/h |
| Total installed power | ≤140kW |
| Machine dimensions (L×W×H) | 13500×5500×7200mm |
| Total weight | 12000kg |
| Cooling method | Air ring cooling |
| Control system | PLC touch screen (parameter setting and real-time monitoring) |
| Compatible material | PVC resin powder (with appropriate additives) |
Raw material handling system
A material mixing unit and automatic feeding system mix PVC resin powder with additives and deliver materials accurately, ensuring stable formulation.
High-efficiency extrusion system
A 100mm screw with an L/D ratio of 28:1, combined with a barrel, 55kW drive motor, and 32kW barrel heaters, enables rapid plasticization and stable extrusion.
Precision forming system
A Ø120mm precision die head equipped with 2kW heaters, together with a high-quality air ring, inflates the melt into a stable film bubble and ensures consistent forming quality.
Haul-off and flattening system
Haul-off rollers with widths of 1200 / 1600mm and adjustable speeds of 0-60m/min, combined with a flattening unit, ensure smooth film transport and thickness uniformity.
Winding system
A winding unit equipped with a tension monitoring module winds the film evenly into rolls with clean and stable edges.
Electrical control system
A PLC and touchscreen interface integrate full-process parameter control and monitoring, enabling automated and reliable operation.
- High efficiency and high output
Rapid plasticization by the screw and barrel system supports an output of 90-120kg/h, delivering over 30% higher efficiency compared with conventional machines and supporting large-scale production. - Stable product quality
Precision die head and high-performance air ring ensure film thickness deviation ≤ 3%, shrinkage≥45%, and finished product qualification rate≥99%. - High automation level
PLC and touchscreen control enable full-process automation, allowing stable operation with only 1-2 operators. - User-friendly operation
An intuitive interface and comprehensive alarm system allow operators to become independent after short-term training. - Energy saving performance
With total installed power ≤ 140kW and precise temperature control, energy consumption is reduced by approximately 15% compared with traditional equipment. - Wide adaptability
Supports production of PVC films with widths of 1200-1400mm and thicknesses of 0.012-0.06mm, meeting the needs of packaging, agriculture, and industrial protection applications.
