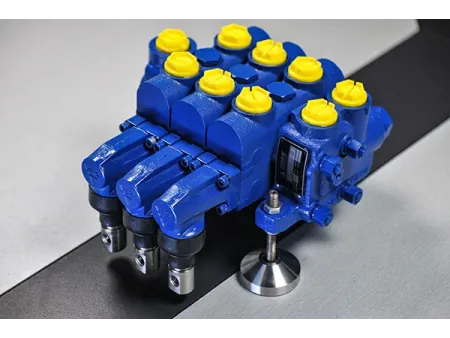

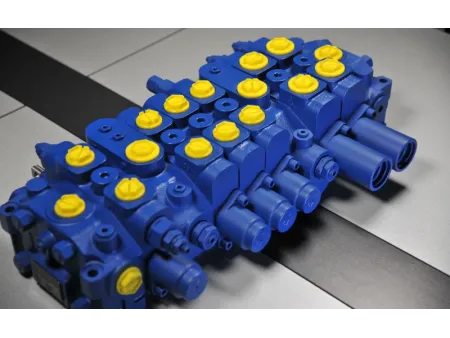

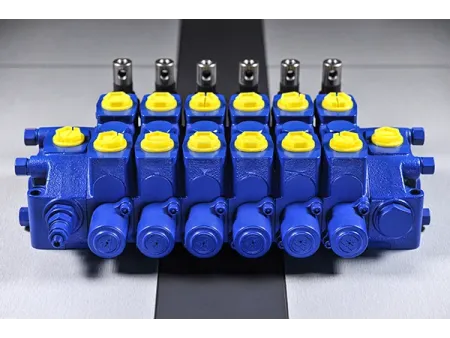

The DL-G10L hydraulic directional control valve is intended for lower-structure control systems of full-hydraulic truck cranes, aerial work platforms, and truck-mounted cranes. A sectional-type directional-control structure with cast-in internal flow passages is employed, allowing multiple valve sections to be combined for directional switching and operational control of hydraulic actuators.
Technical Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Solenoid |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 10mm |
| Max. Flow Rate | 80L/min |
| Max. Working Pressure | 250bar |

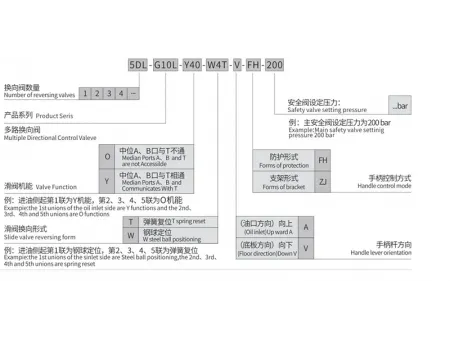

Diagram
Dimension Drawing
Features & Advantages
- Lower-structure control application: Port size and flow capacity are configured specifically for lower-structure control circuits, supporting stable operation of aerial work platforms and truck-mounted cranes.
- Modular combination structure: A modular arrangement of functional sections enables flexible configuration of control schemes according to different application scenarios.
- High-integration design: The cast-in internal flow passage sectional structure minimizes external connections, resulting in a compact layout and reduced operating force.
- Customizable matching: Based on the standard platform, valve section combinations and control modes can be adjusted to adapt to different operating conditions and system layouts.
