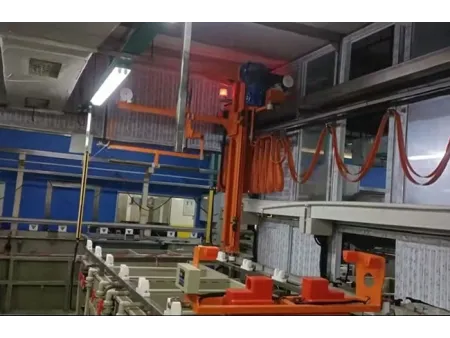

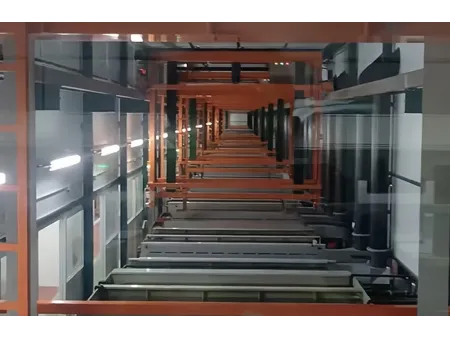

Phosphating Line

Request a Quote

Website: https://plating-equipment.com/phosphating-line-1-6.html

Phosphating Systems

The phosphating line is a comprehensive automated or semi-automated surface treatment process for steel, zinc, aluminum, magnesium, and their respective alloys. Through precise chemical and electrochemical reactions, this phosphate conversion coating line generates a uniform, dense, and water-insoluble phosphate conversion film (phosphating film) on the workpiece surface. It stands as the most widely used, cost-effective, and technologically mature automated pretreatment plant in the metal finishing industry.

The primary industrial objectives of this metal phosphating system are:

Corrosion Protection: Providing a reliable barrier layer to prevent substrate oxidation.
Paint Undercoating: Enhancing the adhesion and durability of subsequent paint, powder coating, or E-coat layers.
Cold Working Lubrication: Reducing friction and providing specialized lubrication during metal cold-forming or wire-drawing processes.

Application Scenarios

This heavy-duty surface preparation equipment is universally adaptable for all metal components requiring robust rust prevention and liquid/powder paint adhesion. It serves as a critical processing stage for automotive bodies, structural steel frames, industrial machinery housings, and metal enclosures.

System Components

This integrated metal surface pretreatment cell features a robust, multi-modular industrial engineering layout:

Heavy-Duty Tank System: High-durability chemical immersion and spray tanks.
Material Transport Layer: Custom-configured overhead cranes, gantry hoists, or chain conveyors.
Thermal Management System: Precision heat exchangers and steam/electric temperature controllers for optimal chemical activation.
Chemical Dosing & Replenishment System: Automated monitoring and injection of phosphating concentrates.
Pure Water Generation Unit: Ensures contamination-free rinsing.
Air-Supply & Air-Knife System: High-velocity air blowers for rapid surface moisture elimination.
Environmental Support Architecture: Advanced wastewater treatment modules designed for phosphorus removal and chemical filtration.

Process Workflow

This sequential finishing architecture operates on a strictly synchronized timeline, where any single variance can compromise film integrity:

Pre-treatment & Decontamination: Thorough degreasing, rust removal, and surface activation.

Core Phosphate Film Formation: Controlled chemical dipping or spraying to grow the phosphate crystalline layer.

3
Post-treatment Passivation & Sealing: Pore-sealing to lock in corrosion protection.

Multi-Stage Rinsing & Thermal Drying: Final clean-water rinsing followed by complete thermal moisture extraction.
