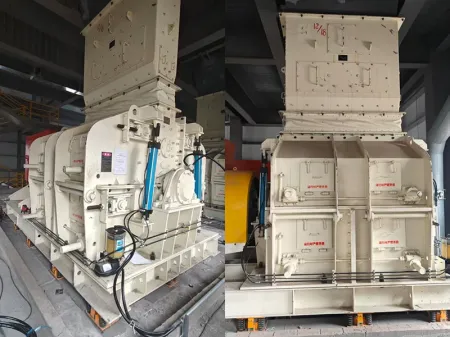

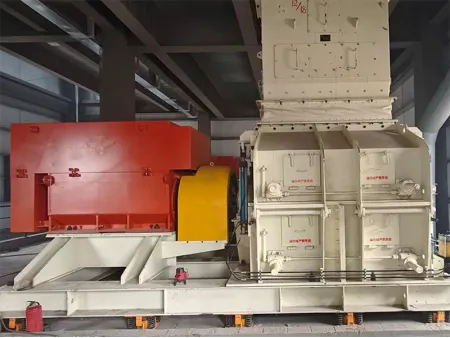

Reversible Hammer Mill

Request a Quote

Website: https://customsteelvalve.com/reversible-hammer-mill-4-1.html

Crushing principle and adjustable hammer-to-breaker plate clearance design

Bi-metal hammer heads

Synchronous adjustment mechanism, worm gear design with a 50:1 reduction ratio allows easier and safer adjustment with smaller feed movement requirements

Four adjustment points operate simultaneously to maintain a uniform clearance between the hammer heads and breaker plates

Full-opening maintenance door for easy access

Movable hydraulic opening station

Automatic bearing lubrication system

Dimensions

Specifications

Dimensions Capacity	A	B	C	D	L	L1	W	W1	H	H1	H2	Total Weight
t/h	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	ton
80-120	1600	1230	730	1524	3993	4570	2685	4590	3580	0	1807	15 (without operating platform)
150-250	1340	1800	730	1776	5242	6274	3016	4724	4197	362	2057	22.6 (with operating platform)
300-350	1714	1660	730	2084	5876	7211	3016	4724	4427	470	2057	29.5 (with operating platform)
400-500	2322	1660	730	2692	6780	8780	3016	4724	4427	470	2057	35.4 (with operating platform)
600-700	2626	1660	730	2996	7718	8880	3016	4724	4482	515	2057	43.6 (with operating platform)
800-1000	2930	1660	730	3300	8094	9194	3016	4724	4482	515	2057	51.5 (with operating platform)

Note: Specifications in this table may vary depending on project requirements and coal characteristics. Data is provided for reference only.
