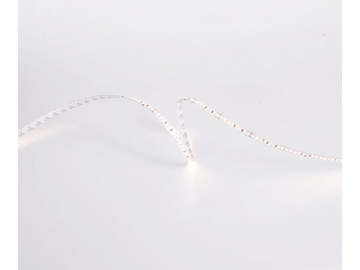

D980 24V 10mm Commercial LED Strip Light
Request a Quote
Features
- This commercial LED strip light adopts international forefront brand Nichia LED to have high reliability.
- The luminous efficiency is up to 149 LM/W, the CRI is higher than 90, and the luminous flux is up to 2500LM/m.
- The surface uses high reflectivity film, and the pad adopts lead-free hot air solder leveling process to be antioxidant.
- This product has passed the LM80 test, and the L80(B10) is over 60000H.
- Ta is within -25~40 °C and the Tc is 85°C (max).
Basic Parameters
| Size | 5000×10×1.7mm |
| Cutting unit | 8LEDs/100mm |
| Input voltage | 24VDC |
| Input current | 0.716A/1m & 2.52A/5m |
| Typical power | 17.2W/m |
| Max. power | 18W/m |
| Bend diameter | ＞60mm |
Photo-electric Parameters
| Color rendering index | >90 | |
| Correlated color temperature | 2700K/3000K/4000K/5000K/6500K | |
| Lumen (m) | 2350/2480/2480/2560/2520 | |
| Luminous efficiency (w) | 136/144/149/149/146 | |
| Energy efficiency class | A++ |
Recommended profiles
- LS1613(B)
- LE2507
- LE2513
- LS1911K(B)
- LS1911C(B)
- LS1911P(B)
- LG3030C(B)
- LG3030K(B)
- LT90
- LT120
