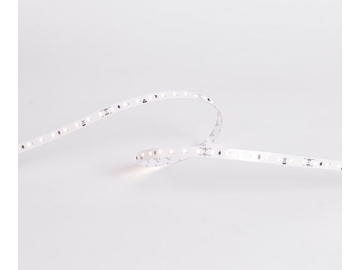

D980B 24V 10mm Commercial LED Strip Light
Request a Quote
Features
- Light efficiency up to 132 LM/W, color rendering index >90, SDCM<3;
- High reflectivity cover film, HASL antioxidant pad;
- Tested by LM80, L80(B10)>60000H.
Basic Parameters
| Size | 5000×10×1.8mm(16.4´×0.39〞×0.07〞) |
| Cutting unit | 8LEDs/100mm |
| Input voltage | 24VDC |
| Input current | 0.716A/1m&3A/5m |
| Topical power | 17.2W/m(5.2W/FT) |
| Max.power | 18W/m(5.5W/FT) |
| Bend diameter | >60mm(2.36inch) |
| Copper foil | 3oz |
Photo-electric Parameters
| Color rendering index | > 90 |
| Correlated color temperature | 2700K / 3000K / 4000K / 6500K |
| Lumen | 2040m/2160m/2320m/2230m |
| Luminous efficiency | 113W/120W/132W/124W |
| Energy efficiency class | A + |
Recommended profiles
- LE2507
- LE2513
- LG3030C(B)
- LG3030K(B)
- LS1613(B)
- LS1911C(B)
- LS1911K(B)
- LS1911P(B)
- LT90
