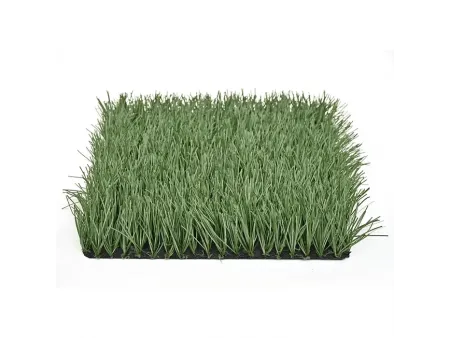

Multi-Purpose Artificial Turf

Features
  • The matte surface reduces glare, making the artificial turf look and feel more like natural grass, which helps prevent visual distractions for players
  • The slightly curved fibers are designed to resist wear and tear, enhancing the artificial turf's durability by increasing fiber pull-out strength by over 40N
  • The diamond-shaped fibers offer excellent resilience and maintain their upright position, providing reliable performance even under heavy use
  • The added texture on the fiber surface enhances traction, giving players better stability during movement
  • The artificial turf is designed to retain moisture, which helps to keep the field's surface balanced, reduces dust, and minimizes injury risks associated with dry conditions
  • With superior elasticity and cushioning, this artificial turf is engineered to protect athletes by reducing the impact on joints and muscles, and by minimizing friction and shock during falls.
Product Overview

Recommended For: Cost-effective option, ideal for school sports fields.

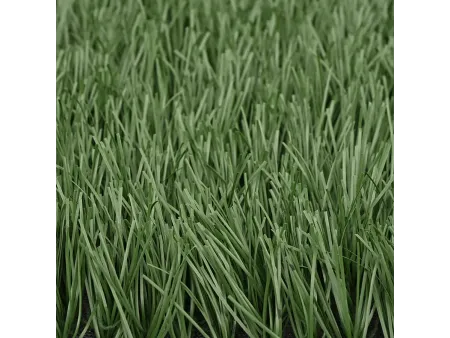

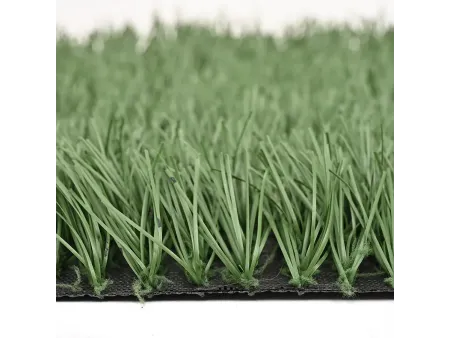

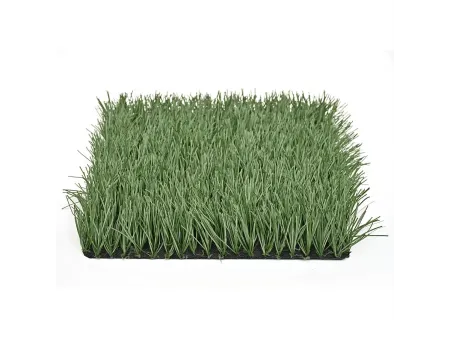

Designed with high-quality Tencate materials, this artificial sports turf features diamond-shaped blades that enhance durability. To achieve a natural grass look, a matte finish has been applied, minimizing glare in bright light conditions and improving the athlete's experience. The diamond structure also incorporates textured stripes to increase friction, boosting player safety on the field.

Main Parameters
Pile Height
50
Density (DTEX)
7000
Backing
UV resistant double PP NET
Latex Type
Styrene-Butadiene Rubber (SBR)
Yarn Color Options
Field Green lime green, combined field green and lime green
Yarn
Yarn type Monofilament
Yarn material PE (polyethylene)
Pile height 50 mm
Yarn width 1.4 mm ±5%
Yarn thickness 205 μm ±5%
Dtex 6000
Density 10710 stitches
Gauge 5/8 inch
Stitch rate 17 stitches

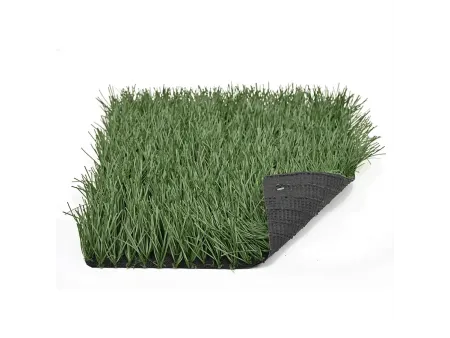

Backing UV resistant double PP NET
Yarn color Field green lime green, combined field & lime green
Finished Product
Recommended roll width 4 m
Total weight 2100 g/m²
Product weight (100m² per roll) 230 kg
Packaging material Waterproof PP film
Latex
Latex type SBR latex
Latex weight 1100 g/m²
Silica sand
Sand size 0.35-0.85 mm
Mesh size 30-50 mesh
Color Beige, white
Infill Granules (Optional)
  • SBR Granules
    SBR granules are designed to closely mimic the properties of natural rubber but with enhanced features like better abrasion resistance, heat tolerance, and longevity. These granules not only excel in performance but also offer a quicker vulcanization process, making them ideal for diverse applications. Whether for sports fields or other demanding environments, SBR granules provide reliable durability and are a popular choice for projects requiring high-performance materials.
  • EPDM Granules
    EPDM granules are known for their low density, making them an excellent choice as a lightweight infill material. Their outstanding shock absorption and compression resistance properties make them ideal for artificial turf systems where safety is a priority. These granules are suitable for environments where the cushioning and safety of the playing surface are critical.
  • Thermoplastic Elastomer (TPE) Granules
    TPE granules offer a reliable combination of durability and flexibility, making them a strong choice for artificial turf systems under heavy use. These granules are non-toxic and environmentally friendly, with a broad range of hardness levels available. Their soft texture and excellent resistance to weather, fatigue, and temperature changes contribute to a longer turf lifespan while maintaining a safe and comfortable surface.
Related Case Studies
  • Tianjin Hexi Youth Football Training Base
  • National Games of China (Dalian Sports Center Stadium)
  • Chongqing Changshou Sports Center
  • Beijing Tiantan Sports Center
  • Shanghai Jing'an Sports Center
  • Beijing Tsinghua University
  • Tianjin University of Technology
  • Xiamen University
