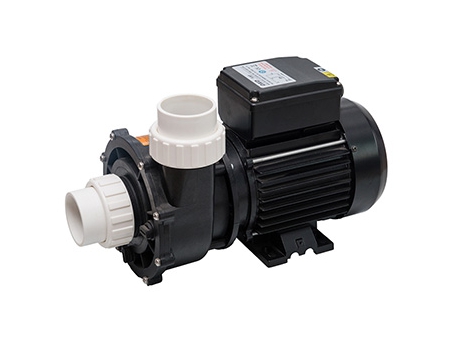

SPA Pump, Series DXD-20A
Request a Quote
Working conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Technical data
| Model | Voltage | Power | Rotating speed(r/min) | Maximum Lift(m) | Maximum flow(l/min) | Insulation class | Gross weight(kg) | Certification | |
| KW | HP | ||||||||
| DXD-20A | 230V/50Hz | 1.5 | 2.0 | 2850 | 10.0 | 750 | F | 20.0 | |
| DXD-20C | 230V/60Hz | 1.5 | 2.0 | 3450 | 10.0 | 750 | F | 20.0 | |
| DXD-1-1500 | 115V/60Hz | 1.5 | 2.0 | 3450 | 10.0 | 750 | F | 20.0 | UL |
| DXD-30A | 230V/50Hz | 2.2 | 3.0 | 2850 | 15.0 | 833 | F | 20.0 | |
| DXD-30C | 230V/60Hz | 2.2 | 3.0 | 3450 | 15.0 | 833 | F | 20.0 | |
| DXD-1-2100 | 115V/60Hz | 2.2 | 3.0 | 3450 | 15.0 | 833 | F | 20.0 | UL |
| DXD-40A | 230V/50Hz | 2.8 | 4.0 | 2850 | 20.0 | 950 | F | 20.0 | |
| DXD-40C | 230V/60Hz | 2.8 | 4.0 | 3450 | 20.0 | 950 | F | 20.0 | |
Packing: 420mm×215mm×255mm Container:20＇: 644pcs 40＇ 1386pcs
Optional function: timer & no water protection
