MTR 300 Push-Pull Welding Torch

MTR 300 Push-Pull Welding Torch
MTR 300 Push-Pull Welding Torch
Request a Quote
View All: http://weldingtoolsmaker.com/2019/1-1-4-1-mtr300-push-pull-welding-torch.html

Technical Data

Cooling Method:Air-Cooled
Rating:co2:300A
Rating: Mixed Gas: 200A
Duty Cycle:60%
Wire Size:0.8-1.2
Fitting Style:TWECO/MILLER/EURO

Model
Description Length Part Number
Tweco Fitting 10ft MTR300-10T
12ft MTR300-12T
15ft MTR300-15T

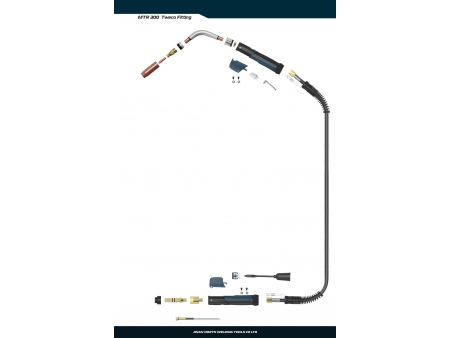

Components
No. Part Number Description No. Part Number Description
1 401-6-62 Nozzle 15 Q1705 Gasket
2 403-1-035 Contact Tip 16 TRG3510 Cable Assembly 10ft
3 404-3 Tip Adaptor   TRG3512 Cable Assembly 12f
4 402-11 Insulator   TRG3515 Cable Assembly 15ft
5 305-60 Swan Neck Assembly 17 LAK-354 2Pin Plug Assembly
6 TRG4213 Torch Body Assembly 18 194 Connector Tab Assembly
7 NH0107 Handle 19 NH020401 Rear Housing
8 N_PL Label 20 TRG4312 Connector Plug
9 NH010704 Trigger Housing 21 TU0007 Tweco Connector Plug
10 N411-1 Trigger Switch 22 TRG4215 Insulator Cap
11 NH010707 Trigger 23 44-3545-10 Liner 10ft,0.9-1.2mm
12 NH010706 Ball Joint   44-3545-12 Liner 12ft.0.9-1.2mm
13 142SBJ02 Cable Support Spring   44-3545-15 Liner 15ft,0.9-1.2mm
14 Q210508BP Screw M5x8
