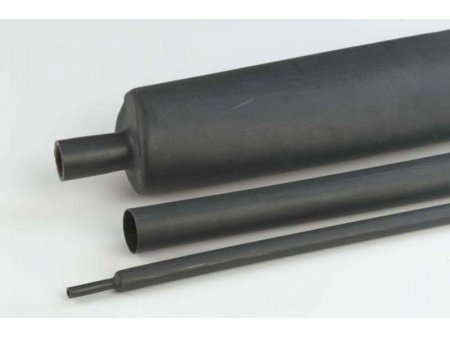

Single Wall Heat Shrink Tubing, RSFR-105
Model: RSFR-105
Economical, non self-extinguishing, halogen free heat shrinkable tubing
RSFR-105 single wall heat shrink tubing is fabricated from cross-linked polyolefin, featuring excellent physical, chemical and electrical properties. This heat shrinkable tube is halogen-free and not self-extinguishing, suitable for insulation and protection of cables from abrasion, corrosion and mechanical damage.
Features
- Shrink ratio: 2:1
- Flexible
- Halogen free
- Temperature: -55℃ to 105℃
- Shrink temperature: ≥105℃
- RoHS and Sony compliant
- Electrical insulation
- Strain relief for connectors and splices
- Protection against mechanical damage and abrasion
- Moisture and corrosion resistance
- Wire bundling
- Wire harnessing
Property | Test Method | Typical Performance |
Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
Ultimate elongation (%) | ASTM D 2671 | ≥200 |
Voltage withstand | 2500V, 60s | No breakdown |
Volume resistivity (Ω.cm) | ASTM D 876 | ≥1014 |
Size | As Supplied | After Recovery | Standard Package | ||
inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | Spool Length (m/spool) |
3/64 | 0.6 | 0.90±0.20 | ≤0.40 | 0.33±0.10 | 200 |
0.8 | 1.10±0.20 | ≤0.50 | 0.33±0.10 | 200 | |
1/16 | 1.0 | 1.50±0.20 | ≤0.65 | 0.36±0.10 | 200 |
1.5 | 2.00±0.20 | ≤0.85 | 0.36±0.10 | 200 | |
3/32 | 2.0 | 2.50±0.20 | ≤1.00 | 0.45±0.10 | 200 |
2.5 | 3.00±0.20 | ≤1.30 | 0.45±0.10 | 200 | |
1/8 | 3.0 | 3.50±0.20 | ≤1.50 | 0.45±0.10 | 200 |
3.5 | 4.00±0.20 | ≤1.80 | 0.45±0.10 | 200 | |
4.0 | 4.70±0.20 | ≤2.00 | 0.45±0.10 | 200 | |
3/16 | 4.5 | 5.00±0.20 | ≤2.30 | 0.45±0.10 | 200 |
5.0 | 5.50±0.20 | ≤2.50 | 0.56±0.10 | 100 | |
5/16 | 6.0 | 6.50±0.20 | ≤3.00 | 0.56±0.10 | 100 |
7.0 | 7.50±0.30 | ≤3.50 | 0.56±0.10 | 100 | |
3/8 | 8.0 | 8.50±0.30 | ≤4.00 | 0.56±0.10 | 100 |
9.0 | 9.50±0.30 | ≤4.50 | 0.56±0.10 | 100 | |
10 | 10.50±0.30 | ≤5.00 | 0.56±0.10 | 100 | |
1/2 | 11 | 11.50±0.30 | ≤5.50 | 0.56±0.10 | 100 |
12 | 12.50±0.30 | ≤6.00 | 0.56±0.10 | 100 | |
13 | 13.50±0.30 | ≤6.50 | 0.70±0.10 | 100 | |
5/8 | 14 | 14.50±0.30 | ≤7.00 | 0.70±0.10 | 100 |
15 | 15.50±0.40 | ≤7.50 | 0.70±0.10 | 100 | |
16 | 16.50±0.40 | ≤8.00 | 0.70±0.10 | 100 | |
3/4 | 17 | 17.50±0.40 | ≤8.50 | 0.70±0.10 | 100 |
18 | 19.00±0.50 | ≤9.00 | 0.70±0.10 | 100 | |
20 | 22.00±0.50 | ≤10.0 | 0.80±0.15 | 100 | |
1 | 22 | 24.00±0.50 | ≤11.0 | 0.80±0.15 | 100 |
25 | 26.00±0.50 | ≤12.5 | 0.90±0.15 | 50 | |
1-1/4 | 28 | 29.00±0.50 | ≤14.0 | 0.90±0.15 | 50 |
30 | 31.50±1.00 | ≤15.0 | 1.00±0.15 | 50 | |
1-1/2 | 35 | 36.50±1.00 | ≤17.5 | 1.00±0.15 | 50 |
40 | 41.50±1.00 | ≤20.0 | 1.00±0.15 | 50 | |
45 | 46.50±1.50 | ≤22.5 | 1.00±0.15 | 25 | |
50 | ≥50 | ≤25.0 | 1.00±0.15 | 25 |
