Model: CB-1000

Material: Irradiated cross-linked modified Polyolefin

Shrink ratio: 2:1

Applications

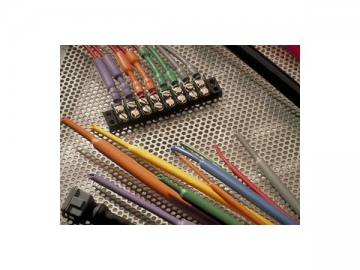

The military quality single wall heat shrink tubing features an excellent insulation performance and oil resistance. It is specially designed to meet requirements for automotive wire harnesses, automotive oil tubing and automotive gas tubing in flame resistant and halogen-free options that are RoHS compliant. This material is very flexible and has an excellent mechanical strength, making it ideal for a wide array of applications in extreme environments and special requirements, including wire protection of automotive wire harness, engines and air conditioning hoses.

Standard: UL224, AS23053/5.

Size

Type	Inside diameter		Wall thickness after recovery(in mm)
Type	Min. ID as supplied(in mm)	Max. ID after recovery (in mm)	Wall thickness after recovery(in mm)
CB-1000-101	1.2	0.6	0.41±0.08
CB-1000-102	1.6	0.8	0.43±0.08
CB-1000-103	2.4	1.2	0.51±0.08
CB-1000-104	3.2	1.6	0.51±0.08
CB-1000-105	4.8	2.4	0.51±0.08
CB-1000-106	6.4	3.2	0.64±0.08
CB-1000-107	9.5	4.75	0.64±0.08
CB-1000-108	12.7	6.4	0.64±0.08
CB-1000-109	19.1	9.53	0.76±0.08
CB-1000-110	25.4	12.7	0.89±0.13
CB-1000-111	38.1	19.1	1.02±0.15
CB-1000-112	50.8	25.4	1.14±0.18
CB-1000-113	76.2	38.1	1.27±0.20
CB-1000-114	101.6	50.8	1.4±0.23

Specifications

Item	Test method	Standard	Specifications
Radial shrinkage	ASTM D2671	≥50%	66%
Longitudinal shrinkage	ASTM D2671	-5%~+5%	-4%
Tensile strength	ASTM D638	≥10.4MPa	14.1MPa
Elongation at break	ASTM D638	≥200%	329%
Aging in circulating-air oven	175.0°C/168h	-	-
Tensile strength after heat aging	ASTM D638	≥7.3MPa	9.5MPa
Dielectric strength after heat aging	ASTM D2671	≥15.8kV/mm	24kV/mm
Volume resistivity	ASTM D876	≥1.0x10¹²Ω· cm	3.6x10¹²Ω· cm
Fuel resistance	SAE-AMS-DTL 23053/5	non-corrosive	Pass
Copper corrosion	ASTM D2671	No corrosion	Pass
Heat shock	SAE-AMS-DTL 23053/5	No dripping, cracking, or flowing	Pass

Features

This heat shrink tubing is AS25053/5 compliant and certified to RoHS standards.
The operating temperature of this thin wall shrink tubing is -55℃~135℃ and the shrink temperature range is 100℃~140℃.
This thin wall heat shrink tubing has achieved UL125℃ certification and its UL bug voltage is 600V.
