BOP Hoses (Blowout Preventer Hose)

Request a Quote

View All: http://wellhead-equipment.com/1-1-bop-hoses.html

API Spec 16D GNG High-pressure Fire-resistant Hose Assemblies for Blowout Prevention and Well Control

NBR/PVC covered hoses

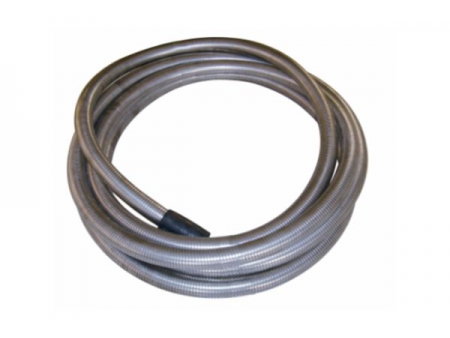

Antistatic and armored hoses

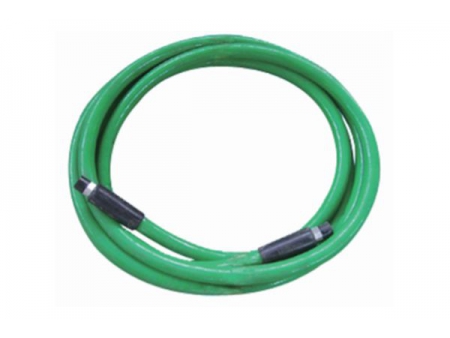

PU wrapped hoses

BOP hoses are mainly designed to connect blowout preventers and control systems in oil rigs, and to transport energy resources and other media in combustible environments. The BOP hoses have three types which are respectively wrapped by a layer of NBR/PVC, metal and PU.

Features

The reinforcement layer of the drilling hose adopts imported high-strength steel wires.
The BOP hoses’ inner rubber layer, made with our special formula, is wear-resistant and can withstand the corrosion of water, gas and oil as well as extreme weathers. The formula can be adjusted based on transported contents.
The hose couplings adopt anti-corrosively and thermally treated 45K/60K materials in line with the working pressure and environment. With identical bore diameters, the couplings can be connected to the tube without leading to choked and eddy flows and cut loss.
The fire resistance layer adopts our company’s patented technologies, supporting the hoses to work for at least five minutes under the rated pressure and in the 705℃ fire.
The outer layer adopts different materials, metal, PU or NBR/PVC, anticorrosive, wear-resistant and antistatic.

Standard: API Spec 16D

Technical Parameters

Nominal diameter mm (in)	Max. Outer Diameter mm		Min. Burst Pressure MPa		Min. Bend Radius mm		Inner Diameter mm	Bore Diameter mm		Diameter of Drift Diameter Gauge mm	Connection
Nominal diameter mm (in)	21MPa/ 3000Psi	35MPa/ 35000Psi	21MPal 3000Psi	35MPa/ 3500OPsi	21MPa/ 3000Psi	35MPa/ 35000Psi	Inner Diameter mm	Min	Max	Diameter of Drift Diameter Gauge mm	Connection
10(3/8)	35	38	63(9000)	103.5(15000)	180	180	10 0.1-0.7	8	10	80-0.1	NPT 3/8
12.5(1/2)	40	45	63(9000)	103.5(15000)	200	240	12.5 1-0.2	11	13	110-0.1	NPT 1/2
19(3/4)	45	48	63(9000)	103.5(15000)	280	350	19 0.8-0.4	17	19.5	170-0.1	NPT 3/4 NPT 1
25(1)	48	53	63(9000)	103.5(15000)	330	400	25 1.40	23	26	230-0.2	NPT 1
31.5 ( 1 1/4/)	53	65	63(9000)	103.5(15000)	450	500	31.5 1-0.6	30	32	300-0.2	NPT1 1/4
38 ( 1 1/2)	65	75	63(9000)	103.5(15000)	550	600	38 1.3-0.3	36	39	360-0.2	NPT1 1/2
