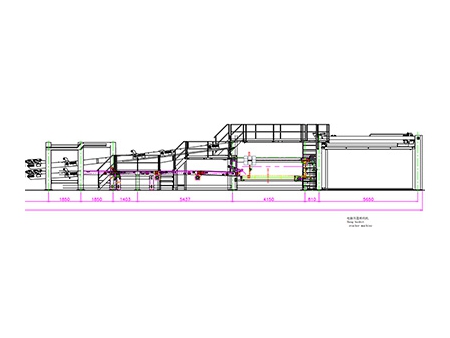

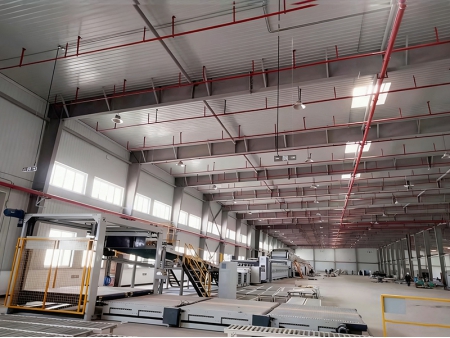

Down Stacker, HM-25A

Down Stacker, HM-25A
Down Stacker, HM-25A
Down Stacker, HM-25A
Request a Quote

Corrugated Board Manufacturing

    1. Design speed
      250m (9842.52")/min
    1. Working width
      1800mm (70.87"), 2000mm (78.74"), 2200mm(86.61"), 2500mm(98.43")
    1. Stacking height
      1800mm (70.87")
    1. Stacking length
      3500mm (137.80")
    1. Max. stacking sheet length
      3000mm (118.11")

Features

  • Automatic sheet counting, pile and order change, not damaging cardboard
  • Belt delivery with five different speed phases, variable frequency speed adjusting, orderly and stable delivery of cardboard;
  • Once the pile height has reached the preset value, the lifting table descends and the platform automatically moves laterally to stably send out piles of cardboard;
  • Electric adjustment of out-feeding cardboard size, with pneumatic brake;
  • Two rows of delivery tables are placed at side of the machine for easy packaging;
  • Variable-frequency drive controls the stacking and delivery of paperboard, delivery speed keeping synchronous with paperboard speed;
  • Flat-belt down stacker, AC servo system controls lift and down, orderly and stable stacking;
  • AC servo system controls back baffle, thus ensuring automatic quick order change and precise positioning;
  • Easy and reliable operation with the touch screen;
  • Fully automated control system, high efficient and effort saving.
