USF Series Brass 2/2-Way Solenoid Valve
- Pilot Operated, Normally Closed
- Port Size: 1/2"–2" (flanged)
- Fluid Temperature: -5°C to 180°C
- Operating Pressure: 0.07–1.6MPa
- Media: hot oil, hot water, steam
USF series is a solenoid valve specifically designed for high-temperature steam environments. It adopts a plunger with a dual-directional guide system that prevents deformation or sticking under extreme heat while maintaining precise alignment and reliable sealing. The metal-encased coil provides excellent heat dissipation, and the flanged connections comply with industrial piping standards for secure installation. By addressing common failure issues in high-temperature solenoid valves, this valve delivers enhanced durability, extended service life, and stable operation under continuous high-temperature conditions.
- The plunger structure with upper and lower PTFE sealing rings resists high-temperature deformation and ensures long-term reliable sealing
- Dual-direction guide system enables smooth piston motion and prevents sticking from heat fluctuations
- Open-top design allows easy inspection and maintenance of internal components
- High-voltage magnetic field design with self-balancing clearance structure improve operational stability under high-temperature
This solenoid valve is mainly used in steam distribution systems in high-temperature industrial environments that require reliable shut-off and control of saturated or high-temperature steam, such as:
- Pharmaceutical sterilization equipment
- Food-processing machinery
- Industrial dryer equipment

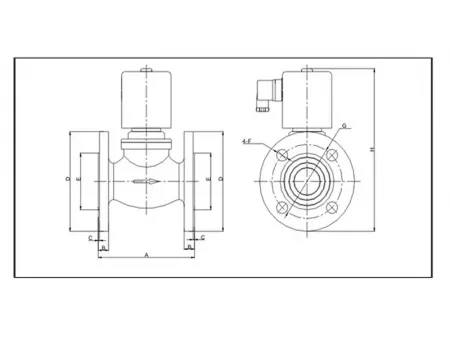

| Model | A | B | C | D | E | N-F | G | H |
| | 81 | 12 | 2 | 102 | 56 | 4-14 | 75 | 145 |
| | 81 | 12 | 2 | 102 | 56 | 4-14 | 75 | 148 |
| | 91 | 12 | 2 | 115 | 65 | 4-18 | 85 | 156 |
| | 113 | 16 | 2 | 140 | 78 | 4-18 | 100 | 185 |
| | 113 | 16 | 2 | 148 | 65 | 4-18 | 110 | 183 |
| | 168 | 16 | 2 | 165 | 78 | 4-18 | 125 | 216 |
| Note: Valves can be mounted in any position unless installation restrictions are specified. | ||||||||
| Category | | ||
| Mode of operation | Pilot operated | Port size | 1/2"–2" flanged |
| Series | USF | Function | Normally closed (NC) |
| Body material | Brass | Wiring | Flying leads |
| Control method | Solenoid valve | Protection level | IP43 |
| Operating pressure | 0.07-1.6MPa | Mounting | Bracket required |
| Sealing material | PTFE | Recommended installation method | Horizontally |
| Fluid temperature | -5℃ to 180℃ | Connection | Flanged |
The USF series is specifically designed for steam applications up to 180°C.

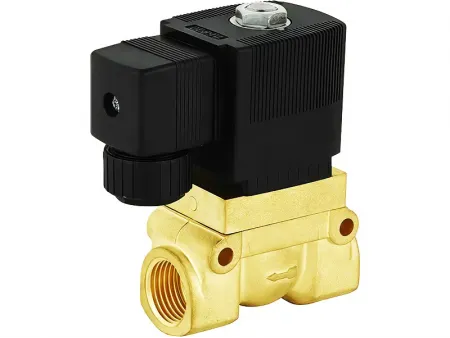

5404 series solenoid valve is specifically designed for high-pressure steam applications and can withstand up to 5.0 MPa.
Yes. The USF Series can operate reliably under continuous exposure to 180°C. Its plunger ensures optimal sealing even at high pressure, while the PTFE sealing material provides superior resistance to heat without degradation, offering long-term durability and consistent performance.
