Rubber Processing Machinery

Rubber Extrusion

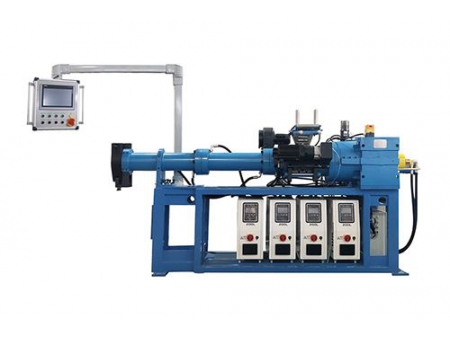

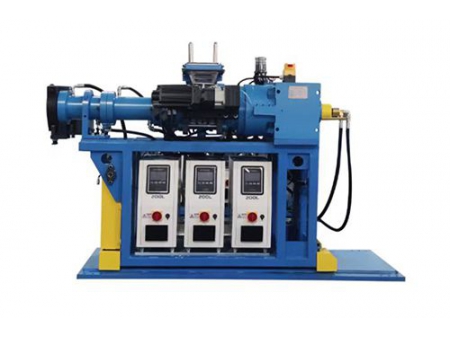

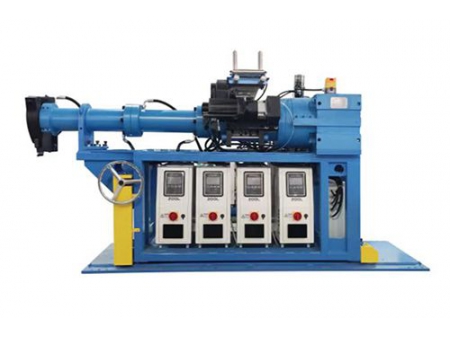

Single screw extruder for rubber processing

Rubber extruder is applicable for the extrusion of rubber products, including rubber hoses, rubber strips, waterstops, and other similar products. It is used for both single extrusion and co-extrusion molding of rubber.

Features

  • Uniform extrusion output.
  • High temperature control precision with temperature fluctuations within ±1℃.
  • Can be equipped with automatic rubber feeder, single extrusion head, and co-extrusion head.
Specifications
Model L/D Motor power (kW) Max. speed (rpm) Output (Kg/h)
XJW/XJP 30 10-14 4 80 10
XJW/XJP 40 16-18 11 80 20
XJW/XJP 45 16-18 16 80 40
XJW/XJP 60 16-20 33 80 120
XJW/XJP 75 16-20 44 60 200
XJW/XJP 90 16-20 73 60 300
XJW/XJP 120 18-22 110 55 500
