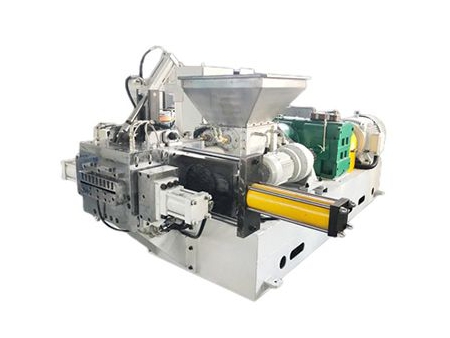

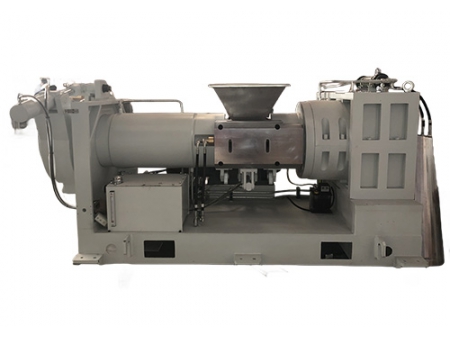

Our hot feed rubber extruder strainer is a versatile solution that seamlessly integrates rubber mixing, filtration, and sheeting processes. Built to accommodate customization, our hot feed rubber extruder strainer aligns ideally with your rubber processing requirements. Whether you're working with rubber, plastics, or various elastomers, our system caters to your range of processing needs.

Specifications
Model 150 200 250
Barrel and Screw
Screw Diameter 150mm 200mm 250mm
Length/Diameter Ratio (LD) L/D=7:1 L/D=6:1 L/D=5.5:1
Screw Rotating Speed 0-50r/min 0-50r/min 0-42r/min
Gearbox
Reducer Ratio 20:1 20:1 25:1
Feeding Motor Power 55 kW-6p 75 kW-6P 110 kW-6P
Forced Feeding System
Feeding Method Automatic twin screw feeding Automatic twin screw feeding Automatic twin screw feeding
Electrical Parts
Main Motor 55 kW variable 75 kW variable 110 kW variable
Feeding Motor 5.5 kW variable 7.5 kW variable 11.5 kW variable
Hydraulic Station Motor 5 kW 5 kW 5 kW
Machine Size
Dimension (L*W*H) (mm) 3900*2100*1700 4400*2300*1800 5400*2600*1800
We are a rubber machinery manufacturer. We primarily manufacture equipment such as rubber preformer machines, ram extruders, rubber blank manufacturing equipment, rubber strainers, rubber cooling conveyor systems, and more.

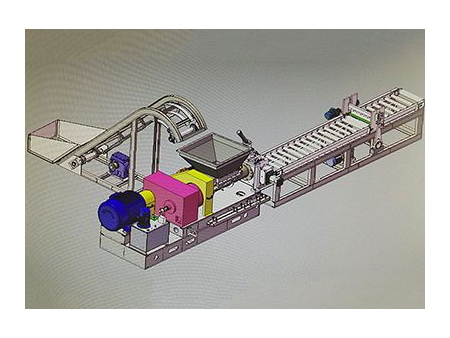

This is a rubber extrusion line with multiple functions, including rubber mixing, rubber straining, rubber extruding, and more.

Yes, it can be customized according to the customer's requirements.

This rubber extrusion machine consists of a gearbox, a forced feeding system, electrical components, and more.

It is suitable for straining and extruding rubber, plastic, and any other elastomeric compound.
Our hot feed rubber extruder strainer is primarily used by rubber extrusion manufacturers, rubber products manufacturers, tire manufacturing plants, medical device manufacturers, automotive parts manufacturing companies, rubber compound suppliers, and more.
We offer a default 12-month warranty service for our rubber machinery. Beyond the warranty period, we still provide discounted technical support and rubber machine parts.
