Request a Quote
Description

This packaging machine series packages the stacked sanitary napkins and panty liners into bags, then seals the bags. It will also produce the bags before packaging, with the packing material a printed film. Two rolls of printed film with one on and one off operational functions will not stop packaging when changing between either roll, ensuring this packaging machine has a high working efficiency. It will quickly switch between different product specifications, and is easy to operate.

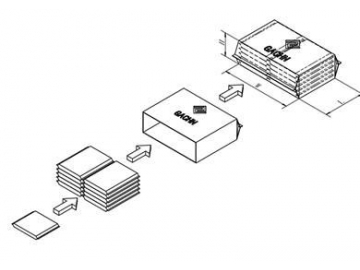

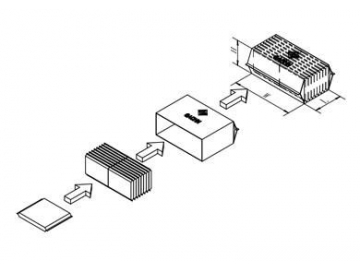

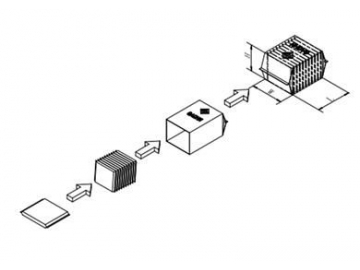

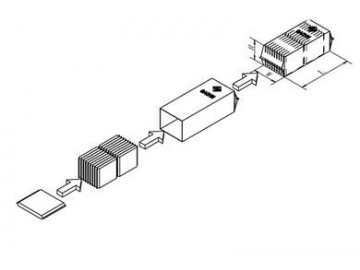

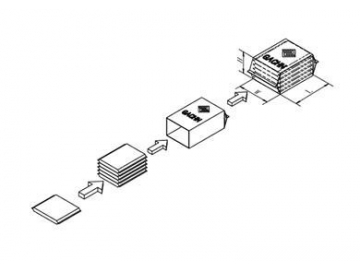

Schematic diagram of the package
  • Schematic diagram of sanitary pad packaging
  • Schematic diagram of stacked sanitary pad packaging
  • Schematic diagram of double-packed sanitary pad packaging
  • Schematic diagram of twin sanitary pad packaging
  • Schematic diagram of double-stacked sanitary pad packaging
Technical parameter
Designed speed 60bags/min
Packaging specifications Length 80~150mm
Width 60~110mm
Height 30~80mm
Special features
  • Gusset shaping unit ensures product stability and accuracy; gusset overlap deviation is less than 3mm.
  • Bag opening unit operates with bag package of different specifications, and the changing of specifications can be done by adjusting the parameters.

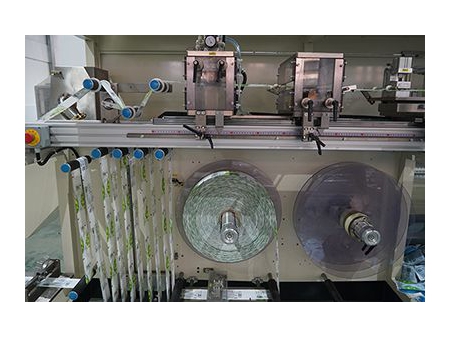

  • The roll unwinding unit runs continuously, while one roll is being used, a spare roll is inserted into the machine, enabling it to switch between rolls in a short time, thus the increasing working efficiency.
  • The height of the machine is adjusted through a device placed under it, enabling it to maintain its horizontal placement on uneven surfaces.

Gachn is a professional counting stacking sanitary pad machine manufacturer and supplier, leader in designing and manufacturing automated bag packaging equipment.
