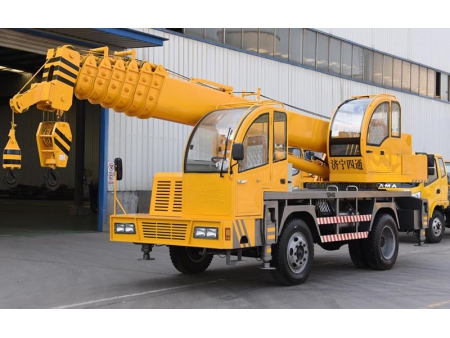

12T Truck Cranes, STSQ12D
Request a Quote
STSQ12D 12-ton truck-mounted crane adopts our self-made chassis that allows it to be used in confined spaces and permitted to enter a worksite through narrow areas. This truck crane can provide the maximum lifting height of 40m, and the maximum loading capacity can reach 2.4 ton when the telescopic boom is fully extended. This truck-mounted crane is configured with 15kW motor, extendable supporting frame, double-section stabilizer legs and 360-degree rotating platform, providing better stability and reliability than other mobile cranes with equivalent load capacity.
Specifications
- Max. loading capacity
- 12t
- Max. lifting height
- 40m
- Longitudinal outrigger span
- 6.5m
- Transversal outrigger span
- 6.5m
- Boom
- 8 sections (6m per section)
- Frame extension length
- 1.3m
- Dimensions
- 9.2m*2.15m*2.8m
- Motor power
- 15kW
- Slewing speed
- 0-3r/min
- Engine power
- 82kW
- Tyres
- 825R20
- Wheelbase
- 2.8m
