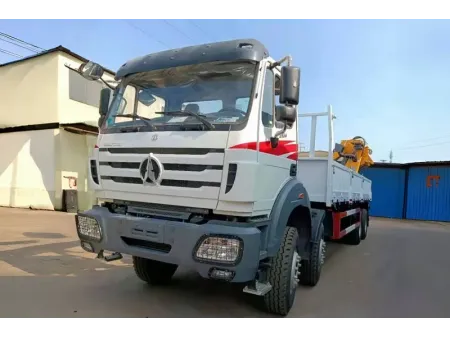

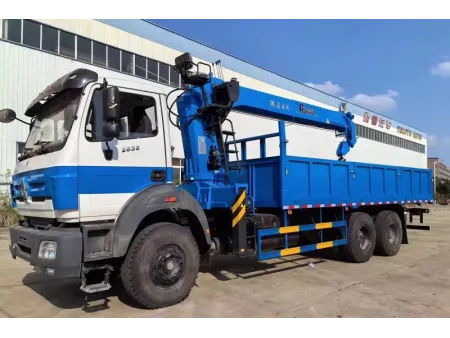

Lorry-Mounted Crane / Truck-Mounted Crane

Request a Quote

Website: http://heavytrucks-en.com/3-1-lorry-mounted-crane.html

SPECIAL TRUCKS

This off-road truck-mounted crane is engineered for heavy-duty lifting tasks across complex terrains. Powered by a 340HP engine paired with a 12-speed transmission and double reduction drive axles, it delivers exceptional performance for lifting operations in deserts, muddy sites, and steep gradients.

Designed with operational flexibility in mind, it offers 4×4, 6×6, and 8×8 drivetrain options and supports lifting capacities ranging from 2 to 18 tons. The robust WP10 engine (available in 290HP–380HP configurations) ensures stable power output under demanding conditions, while the reinforced chassis and axle system enhance off-road reliability.

Engine power 340HP / 2200 rpm
Maximum lifting capacity 2–18 tons
Chassis configuration Double reduction drive axles
Drive modes 4×4, 6×6, 8×8

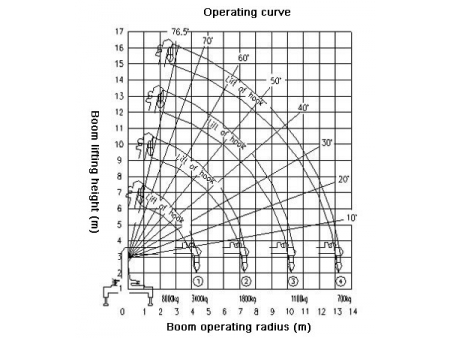

Dimensional Drawing

Specifications

Model	1929A Lorry-Mounted Crane	2634A Lorry-Mounted Crane	3138A Lorry-Mounted Crane
Driving Type	4×4	6×6	8×8
Cab	Cab ExteriorMetal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab InteriorAir-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments
Engine	Type: WP10.290E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 290/2200 Max. Torque (N.m/rpm): 1160/1200~1600 Cylinder: 6 in-line	Type: WP10.340E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 340/2200 Max. Torque (N.m/rpm): 1250/1400~1600 Cylinder: 6 in-line	Type: WP10.380E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 340/2200 Max. Torque (N.m/rpm): 1460/1400~1600 Cylinder: 6 in-line
Transmission	9JS150A / 15.53-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Constant Mesh Transfer Box: yes Power Take-Off (P.T.O.): yes	12JS160T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: yes Power Take-Off (P.T.O.): yes	12JS200T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: yes Power Take-Off (P.T.O.): yes
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7000kg, driving steering axle, differential lock	7000kg, driving steering axle, differential lock	8000kg 8000kg, driving steering axle, differential lock
Middle & Rear Axle	13000kg, double reduction driving axle, hydraulic shock absorber, differential lock	13000kg 13000kg, double reduction driving axle, differential lock	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 10pcs / Rear 8 6pcs hard parabolic spring	Front 10pcs / Rear 13pcs hard parabolic spring	Front 12pcs×2 / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Truck with Loading Crane	Max. lifting capacity 2000-8000kg	Max. lifting capacity 8000-12000kg	Max. lifting capacity 12000-18000kg
Dimensions	Wheel Base (WB): 4500mm Overall Length (OL): 7100mm Overall Width (OW): 2550mm Overall Height (OH): 3670mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1900mm	Wheel Base (WB): 4450 1450mm Overall Length (OL): 9500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1900mm	Wheel Base (WB): 1500 5050 1450mm Overall Length (OL): 8500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 2300mm
Total Vehicle Weight	10000kg	13500kg	15500kg

*The above data is subject to the actual product.

Applications

Construction sites and infrastructure projects

Material handling: Lifts and positions construction materials such as steel bars, scaffolding, concrete panels, bricks, and aggregates precisely where needed.
Equipment installation: Assists in the placement of light machinery, air conditioning units, pipeline sections, and structural steel components.
On-Site transport: Moves tools, equipment, or materials across different zones within the job site to streamline workflow.

Municipal services, landscaping, and urban maintenance

Tree relocation: Handles the lifting and transplanting of large trees with root balls, making it an essential machine for landscaping and greening projects.
Facility installation & maintenance: Supports the installation or repair of urban infrastructure such as traffic lights, signposts, waste bins, guardrails, and public sculptures.
Utility & sewer operations: Used for hoisting drainage pipes, manhole covers, and cleaning equipment during underground utility work.
