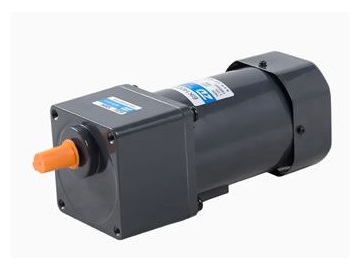

104mm 140W Speed Control Motor

Request a Quote

View All: http://zd-drivers.com/1-2-9-speed-control-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
6IK140RGU-AF	140	1ph 100	50	90～1400	830	420	620	2.70	35
			60	90～1700				3.00
6IK140RGU-EF	140	1ph 110	60	90～1700	830	450	620	1.80	25
		1ph 120						1.95
6IK140RGU-CF	140	1ph 220	50	90～1400	830	420	620	1.05	10
		1ph 230						1.15
6IK140RGU-HF	140	1ph 220	60	90～1700	830	450	620	1.05	10
		1ph 230						1.15

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
6IK140RGU-AF 6IK140RGU-EF 6IK140RGU-CF 6K140RGU-HF	6GU()RC 6GU()RT	Allowance Torque	50Hz	4.97	6.63	9.21	11.0	13.3	18.4	22.1	26.5	33.1	39.8	49.7	59.6	60.0	60.0	60.0	60.0
6IK140RGU-AF 6IK140RGU-EF 6IK140RGU-CF 6K140RGU-HF	6GU()RC 6GU()RT	Allowance Torque	60Hz	4.01	5.34	7.42	8.91	10.7	14.8	17.8	21.4	26.7	32.1	40.1	48.1	53.4	60.0	60.0	60.0

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
6IK140RGU-AF	140	1ph 100	50	90～1350	830	420	620	2.70	35.0
			60	90～1650				3.00
6IK140RGU-EF	140	1ph 110	60	90～1650	830	450	620	1.80	25.0
		1ph 120						1.95
6IK140RGU-CF	140	1ph 220	50	90～1350	830	420	620	1.05	10.0
		1ph 230						1.15
6IK140RGU-HF	140	1ph 220	60	90～1650	830	450	620	1.05	10.0
		1ph 230						1.15

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
6IK140RGU-AF 6IK140RGU-EF 6IK140RGU-CF 6IK140RGU-HF	6GU()K	50Hz	2.60	3.10	4.40	5.20	6.60	7.90	7.80	9.90	11.8	14.2	14.0	17.8	21.4	25.7	28.0	35.6	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
6IK140RGU-AF 6IK140RGU-EF 6IK140RGU-CF 6IK140RGU-HF	6GU()K	60Hz	2.10	2.50	3.50	4.20	5.30	6.30	6.30	7.90	9.50	11.4	11.3	14.4	17.2	20.7	22.6	28.7	34.5	40.0	40.0	40.0	40.0	40.0	40.0	40.0

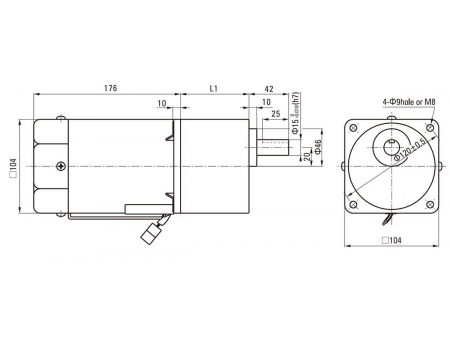

L1=72mm
