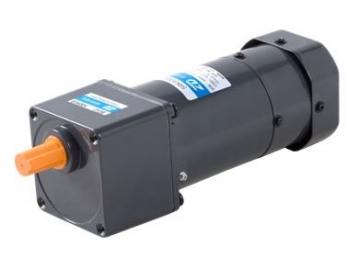

104mm 140W Brake Motor

Request a Quote

View All: http://zd-drivers.com/1-4-9-brake-ac-gear-motor.html

Motor Specifications

Model	Rating	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
6RK140GU-AFM	30min	140	1ph 100	50	2.70	700	1080	1250	35
				60	3.00		870	1550
6RK140GU-EFM	30min	140	1ph 110	60	1.80	700	850	1550	25
			1ph 120		1.95
6RK140GU-CFM	30min	140	1ph 220	50	1.05	850	1040	1250	10
			1ph 230		1.15
6RK140GU-HFM	30min	140	1ph 220	60	1.05	750	850	1550	10
			1ph 230		1.15
6RK140GU-SM	30min	140	3ph 220	50	0.85	2700	1080	1250	-
				60	0.75	2200	870	1550
6RK140GU-S3M	30min	140	3ph 380	50	0.49	2700	1080	1250	-
				60	0.43	2200	870	1550

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
6RK140GU-AFM 6RK140GU-FM 6RK140GU-CFM 6RK140GU-HFM 6RK140GU-SFM 6RK140GUS3FM	6GU()RC 6GU()RT	Allowance Torque	50Hz	4.97	6.63	9.21	11.0	13.3	18.4	22.1	26.5	33.1	39.8	49.7	59.6	60.0	60.0	60.0	60.0
	6GU()RC 6GU()RT	Allowance Torque	60Hz	4.01	5.34	7.42	8.91	10.7	14.8	17.8	21.4	26.7	32.1	40.1	48.1	53.4	60.0	60.0	60.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5		10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Type Motor/Gearhead	Speed r/min	50Hz 60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
6RK140GU-AFM 6RK140GU-EFM 6RK140GU-HFM 6RK140GU-SFM 6RK140GU-S3FM	6GU()K	50Hz	2.10	2.50	3.50	4.20	5.30	6.30	6.30	7.90	9.50	11.4	11.3	14.4	17.2	20.7	22.6	28.7	34.5	40.0	40.0	40.0	40.0	40.0	40.0	40.0
	6GU()K	60Hz	2.10	2.50	3.40	4.10	5.20	6.20	6.10	7.80	9.30	11.2	11.0	14.0	16.8	20.2	22.0	28.0	33.7	40.0	40.0	40.0	40.0	40.0	40.0	40.0

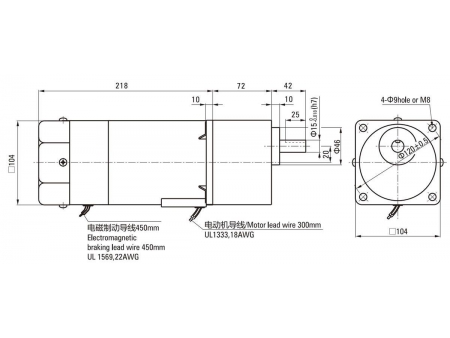

L1=72mm
