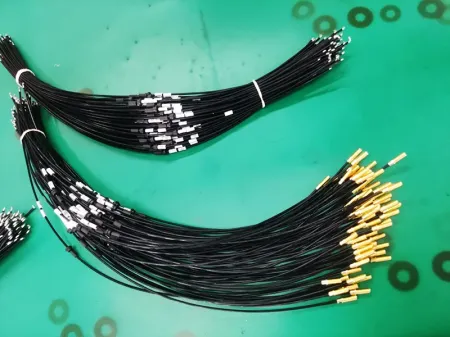

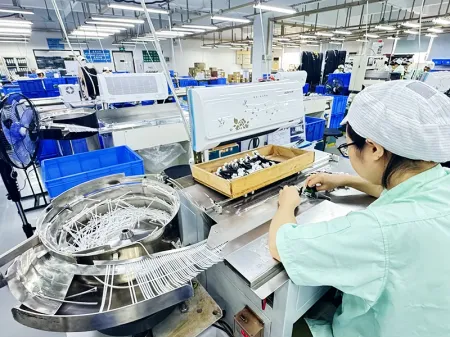

Drone Wire Harness
SAISONIC is the primary drone wiring harness supplier for DJI, the world’s leading consumer drone brand.
Supplying wiring and cable assemblies for unmanned aerial vehicles (UAV) used in robotic inspection systems monitoring methane and carbon dioxide levels in European coal mines, mining sites, and urban sewage systems.
The drone harnesses fully comply with international environmental standards such as RoHS, REACH, and Halogen-Free, facilitating global market access.
All materials used for drone wire harnesses production are UL-certified, ensuring safe and reliable operation.
The largest and most critical wire harness in drones, delivering power to the motors, and ensuring reliable, high-current, and precise power distribution.
- Drone battery main harness: the main cable that connects smart batteries to PDB (power distribution board) or ESC (electronic speed regulator). Typically, the wire gauge is thick (12AWG, 10AWG) and equipped with high-current connectors (such as XT60, XT90/EC5) to handle tens of amperes of instantaneous current.
- Harnesses to connect the ESC to the motor: connects ESC output terminals to the three-phase lines of brushless motors. Usually, three silicone wires (red, black, blue) are bundled together; wire gauge depends on the motor’s power.
- Power distribution harness: multiple cables are routed from the PDB to other components such as electronic speed controllers, drone flight control systems, and video transmission devices. These harnesses distribute power at different voltages (e.g., 12V, 5V) to each component.
These harnesses are the core of signal transmission. They connect the flight controller to sensors and actuators, enabling control and data flow. Ensure accurate control, navigation, and status indication.
- Receiver Harness: a small flat DuPont cable that connects the flight controller to the remote-control receiver, transmitting control signals including PPM, SBUS, CRSF.
- ESC Harness: a small flat cable, usually consisting of three wires — signal, 5V , and GND. It connects the flight controller to the Electronic Speed Controller (ESC).
- GPS/Compass Module Harness: a flat cable connecting the flight controller to the GPS/Compass module. It transmits location, speed, drone heading, and geomagnetic data.
- IMU (Inertial Measurement Unit) Harness: the IMU is typically integrated into the flight controller, but in some high-end designs, it is separated from the flight controller and connected to it via a flat cable.
- LED Strip Light Signal Harness: a wiring assembly that connects the flight controller to LED strip lights for indicating flight status such as alarms, low-battery warnings.

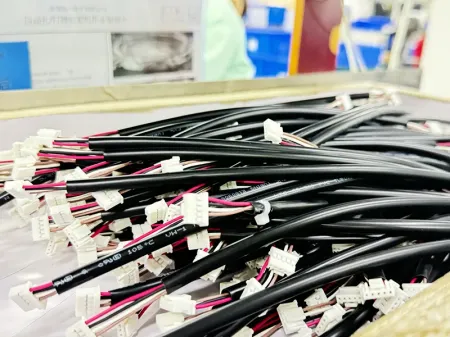

These harnesses are used in aerial photography and industrial drones with cameras and sensors. Ensure reliable data transmission from sensors for navigation, obstacle avoidance, and monitoring.
- Vision Sensor Harnesses: FPC flat cables or coaxial cables that connect the front, rear, and downward cameras with the main control module.
- Infrared/TOF (Time of Flight) Sensor Harnesses: connect infrared distance or laser distance sensors.
- Ultrasonic Sensor Harnesses: cables that connect bottom ultrasonic altitude modules.
These harnesses handle image transmission, gimbal control, and power supply, ensuring smooth video transmission, precise camera control, and stable power delivery.
- FPV Camera Harness: connects FPV camera to video transmitter (VTX); integrates video signal, power, and control lines (channel switching, OSD settings).
- Main Camera Harness: high-speed, complex harnesses connecting the main camera to the core processing board in aerial photography drones.
-
Receiver Harness -
ESC-to-Motor Connection Harness -
Drone ESC Harness -
Drone Battery Main Harness -
Drone Arm Sensor Harness -
Cable Harness for Drone Vision Sensor -
Wire Harness for Drone Infrared/TOF Sensor -
Wiring Harness for Drone Ultrasonic Sensor -
Harness for Drone Obstacle Avoidance System -
Harness for Drone Infrared/TOF Sensor -
Receiver Harness -
Harness for Drone Ultrasonic Sensor -
Drone Arm Wiring Harness -
Receiver Harness -
ESC Signal Harness
With decades of engineering expertise, advanced manufacturing capabilities, and unwavering commitment to quality, we deliver comprehensive wiring solutions for drone and UAV industries tailored to your needs. Our goal is to be your trusted partner — enabling innovation and success, not merely acting as a supplier. Contact us to turn your vision into reality!
