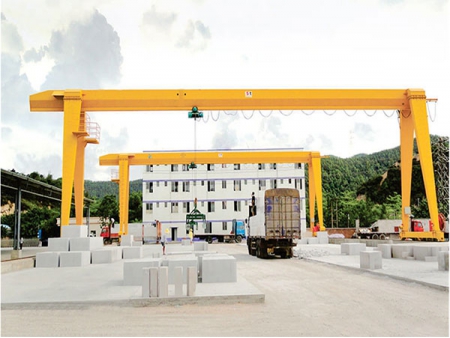

Single Girder Gantry Crane
The single girder gantry crane features simple structure, easy installation, light weight, good wind resistance. The main girder is mostly bias rail box type structure. This gantry lifting equipment is widely used in open work sites, workshops, warehouses, stockyards to load/unload and transport goods or materials.
| Capacity | 1-500t |
| Span | 12-35m |
| Lifting height | 5-40m |
| Work class | A3-A7 |
| Power supply | 380V, 50Hz, 3-phase or customized |
| Control method | Pendant control, remote control, cabinet control |
| Main electric parts | Schneider/ABB |
| Motor | ABB/Siemens |
| IP rating | IP54, IP65 |
| Working temperature | -20℃-60℃ |
- Simple structure, easy to install and maintain
- Strong lifting capacity
- Low noise
- Safe and reliable operation
- Low maintenance cost and long service life
Single girder gantry crane is a type of bridge crane, which is widely used for lifting and moving materials from one location to another in the workshops, warehouses, stockyards, etc. This heavy duty lifting equipment is mounted on legs running on fixed rails or other runway, which maximizes the space utilization during material handling. It’s one of the most commonly used material handling cranes, which can adapt to various materials handling solutions. Single girder gantry crane is also a type of overhead crane, which is an ideal solution for lifting operations in a highly automated, safe and efficient manner.
