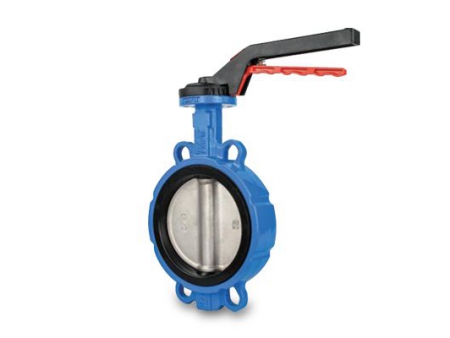

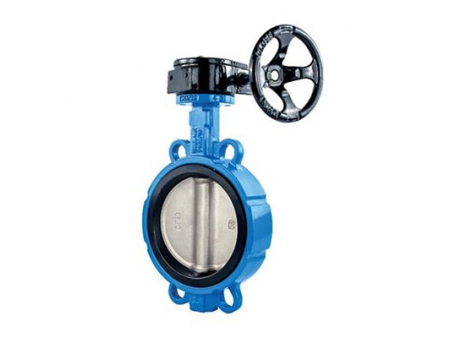

Wafer butterfly valve features a wafer style body, lined with a variety of rubber, PTFE valve seat. It can be used to prevent or regulate the flow in various pipelines. As a low-cost flow control product, wafer butterfly valve has simple structure, small volume, light weight, small operating torque, and long service life of valve seat. This industrial valve allows for quick opening and closing by simply rotating by 90°, which is simple to operate. In addition, it has a good flow control.

Applications

Wafer butterfly valve is not only widely used in the petroleum industry piping system, gas transmission piping system, the chemical corrosion-resistant conveying system, and flow control function in the water treatment industry, but also used in the cooling water system of the thermal power station.

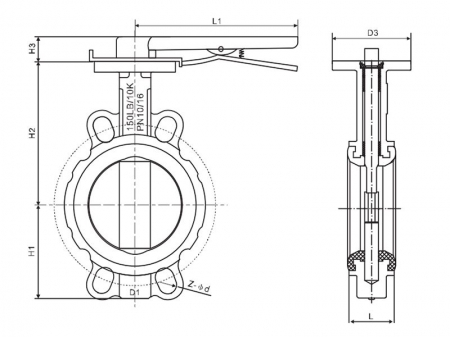

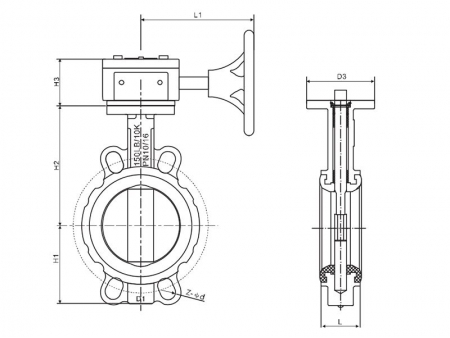

Dimensions (unit: mm)
DN (mm) L L1 D PN1.0 PN1.6 150Lb 10K D3 H1 H2 H3
D1 Z- Ød D1 Z- Ød D1 Z- Ød D1 Z- Ød Flange No.
50 42 220 52.9 125 4-23 125 4-23 120.6 4-19 120 4-19 F05 70 126 32
65 44.7 220 64.5 145 4-23 145 4-23 139.7 4-19 140 4-19 F05 77 137 32
80 45.2 255 78.8 160 8-20 160 8-20 152.4 4-19 150 8-19 F05 92 143 32
100 52.1 255 104 180 4-23 180 4-23 190.5 8-19 175 8-19 F07 105 164 32
125 54.4 290 123.3 210 4-23 210 4-23 215.9 8-22 210 8-23 F07 120 177 32
150 55.8 290 155.6 240 4-25 240 4-25 241.3 8-22 240 8-23 F07 134 198 32
200 60.6 340 202.5 295 4-25 295 4-25 298.5 8-22 290 12-23 F10 171 231 45

Note: If you need other sizes and materials of butterfly valves, please contact us .

Most wafer type butterfly valves are designed with four holes that align with the connected pipeline. These valves are designed to clamp between two flanges in a connected pipeline system. They conform to most flange standards.

The wafer valve is designed to maintain a bi-directional differential pressure seal to prevent any backflow in a unidirectional flow system.

The wafer butterfly valve provides a very tight seal and is ideal for leak-proof applications. Moreover, the wafer butterfly valve is easy to install and maintain.

Butterfly valves are usually divided into three main types: zero offset butterfly valve, double offset butterfly valve or triple offset butterfly valve.

Our company is a professional stainless steel precision casting foundry that has a large stock of general industrial valves, and we also provide a variety of customized products according to the purchaser's drawings and materials.

As a professional stainless steel casting foundry, we offer precision investment casting, sand casting, and machining services for various industry sectors, in addition to the field of flow control valves.
