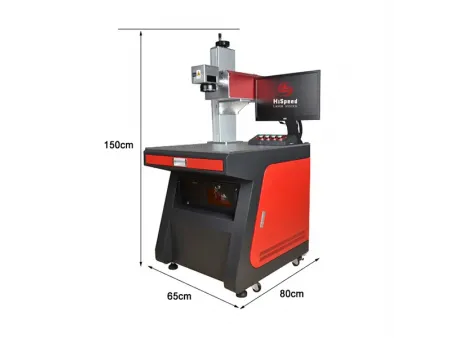

UV Laser Marking Machine, 3/5/8/10W
- Laser source : 3 / 5 / 8 / 10W
- Wavelength : 355nm
- Power Stability(8h) : < ±3%rms
- Beam Divergence : 0.6±0.1mm
The UV laser marking machine features an integrated equipment-workstation design. Its body height and operating interface angle comply with ISO 6385 ergonomic standards, adapting to a standard workbench. It reduces footprint by over 40% compared to traditional models, eliminating the need for additional production line modification, allowing a single machine to complete the entire workflow. It supports multi-mode mixed marking for text, vector graphics, 1D/2D barcodes, dynamic serial numbers, and more, with a resolution of up to 0.01mm.
UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.
| Model | |
| Power | 3W 5W 8W 10W |
| Wavelength | 355nm |
| Beam Quality | M2< 1.3 |
| Output Power | 10%-100KHz |
| Output Frequency | < ±2%rm |
| Power Stability(8h) | < ±3%rms |
| Pulse to pulse instabilit | TEMoo(M2< 1.3) |
| Spatial Mode | < 2mrad(full angle) |
| Beam Divergence | 0.6±0.1mm |
| Beam Diameter | >90% |
| Beam Roundess | < 50urad |
| Pointing Stability | H50rad |
| Polarization Direction | Horizontal |
| Polarization Ratio | 100:1 |
| Cooling | Water-cooling |
Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality, utilizing third-order intracavity frequency doubling technology, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.
Galvo scanner
Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with a 355nm wavelength F-theta lens, primarily used for UV laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
- UV laser
- Laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Computer
- Power cord
- Water chiller
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
