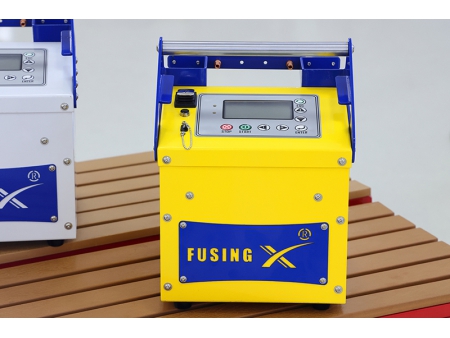

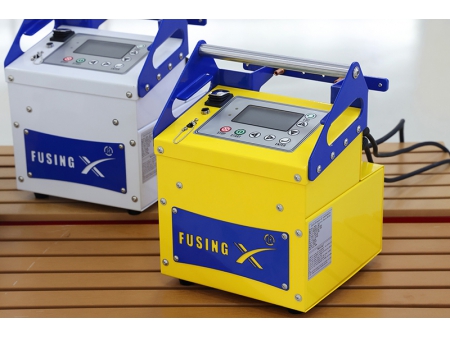

Electrofusion Welding Machine FX series

Request a Quote

Website: https://pipe-weldingmachine.com/1-3-4-electrofusion-welding-machine.html

(20mm-630mm Plastic Pipe Welding)

Electrofusion welding machines are specifically designed for PE and PP pipe fittings that are widely used in gas, water, fire protection, and industrial piping systems. The FX series electrofusion welding machine delivers stable output and simplified operation for consistent welding performance across different job site conditions.

Technical Data

Model	FX40E / FX45E / FX60E
Welding mode	Automatic / Manual
Suitable materials	PE, PP
Power supply	220V±20%, 40-65Hz
Ambient temperature	-15~45℃
Control mode	Constant voltage / Constant current
Data record	500
Duty rate	60%
Data interface	Barcode scanner, USB port, optional printer

Model Selection

Multiple models available for different pipe sizes and project requirements

Model	Welding range	Power	Output voltage	Output current
FX40E	20–355 mm	4000W	3-60V	3-60A
FX45E	20–630 mm	6000W	3-95V	3-60A
FX60E	20–630 mm	6000W	3-60V	3-90A

Applications

FX series electrofusion welding machine is suitable for welding PE and PP pipe fittings used in gas, water, fire protection, and industrial piping systems.

Gas pipeline systems
Water supply systems
Fire protection piping
Industrial piping systems

Features

1. Smart Control System Streamlined control logic improves operation efficiency and reduces manual errors.
1. Consistent Welding Output Stable voltage and current control ensure accurate welding cycles and consistent joint quality.
1. Data Recording & Connectivity Supports barcode scanning, USB data export, and optional printing for welding traceability.
1. Durable Frame Design Heavy-duty steel housing designed for field use, resistant to dust and impact.

Details

1. Control Panel Intuitive interface with LCD display for easy operation and parameter control.
  Standard USB output port.
1. Connection Ports Well-arranged ports ensure stable connections for welding cables and accessories.
1. Backside Layout Compact rear design with integrated components for efficient heat dissipation and durability.

Standard and Optional Accessories

1. Standard
2. Barcode Scanner Scans fitting barcodes to load welding parameters.
1. Optional
2. Printer Prints welding data for traceability and records.
1. Optional
2. Scraper Removes oxidation layer from PE pipe surface before electrofusion.
1. Optional
2. Multi-purpose Plug Used for connecting auxiliary devices to the control unit during operation.
