Automatic Hang Tag Tying Machine, UM-HE3-K Manufacturer

Automatic Hang Tag Tying Machine, UM-HE3-K

Request a Quote

View All: http://stringermachineinc.com/1-3-automatic-hang-tag-tying-machine.html

Our automatic hang tag tying machine automates the entire process of feeding, stringing, knotting, and counting in one seamless operation.

It offers easy setup, simple maintenance, and user-friendly operation, completely eliminating the hassle of manual threading and meeting requirements of the hang tag tying industry.

Compared to the LM-LY3-K model, this machine features a more refined design, greater stability, faster speeds, and quieter performance.

Main Features: PLC control system touchscreen frequency converter sensors indexing device driven by gear box counter

Details

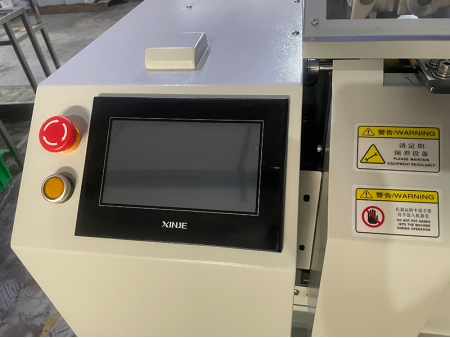

Touchscreen

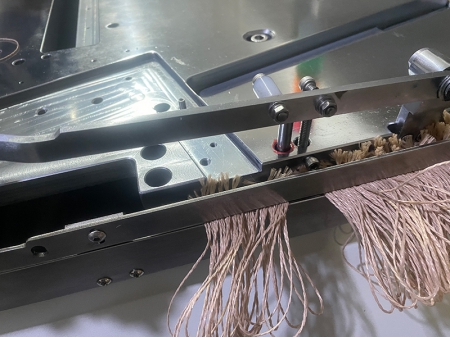

String feeding device

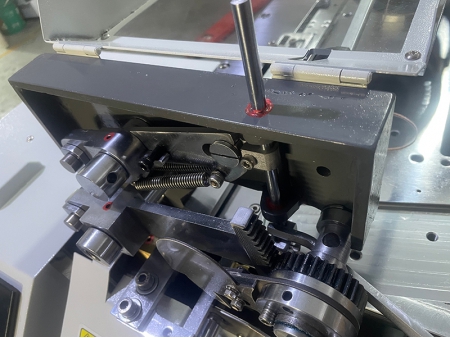

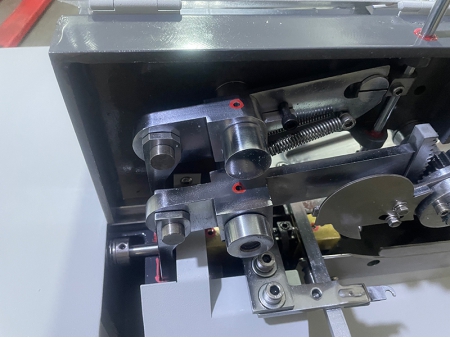

Knotting mechanism

Finished product discharging unit

Specifications

Hang Tag Tying Machine
Model	UM-HE3-K
Speed	3600-6000pcs/h
Cutting method	Cold cut
Weight	450kg
Dimensions	110010001200mm
Power supply	220V, single phase, 50/60Hz
Power	0.75kW

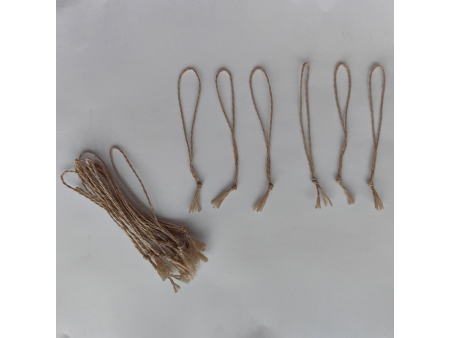

Tag String
String thickness	0.3-2.1mm
String material	Non-elastic string, cotton string, plastic string, ribbon, hemp string, wax string, etc.
Knotted string working length	80-200mm (tail is excluded)
Knotted string tail length	15-20mm
