Automatic Hang Tag Tying Machine, UM-TL8-K Manufacturer

Automatic Hang Tag Tying Machine, UM-TL8-K

Request a Quote

View All: http://stringermachineinc.com/1-4-automatic-hang-tag-tying-machine.html

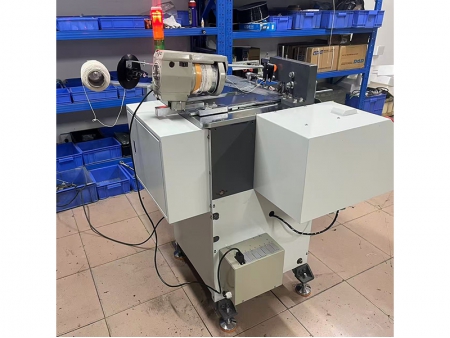

Our automatic hang tag tying machine represents the fourth generation of our innovative designs. It efficiently automates the entire process, from feeding to counting, completing each step seamlessly.

Designed specifically for hang tag tying applications, this machine is easy to set up, maintain, and operate, fully eliminating the difficulties associated with manual threading.

This model offers a more elegant design, enhanced stability, faster operation, and reduced noise compared to the TL-LY8-K.

Main Features: PLC control system touchscreen frequency converter sensors indexing device driven by gear box counter

Details
Main Components

String feeding device

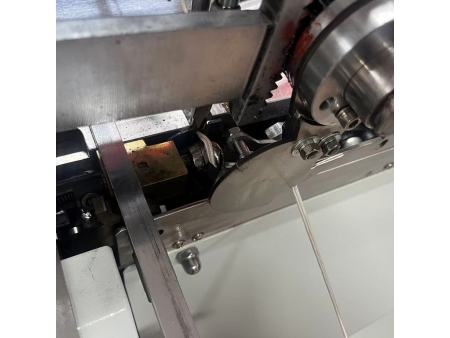

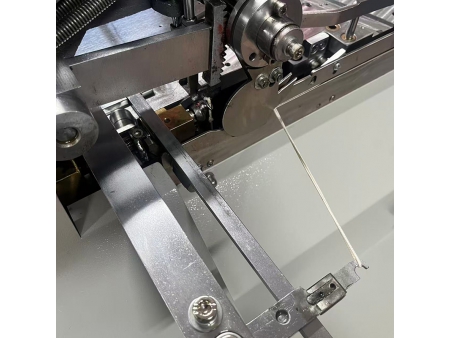

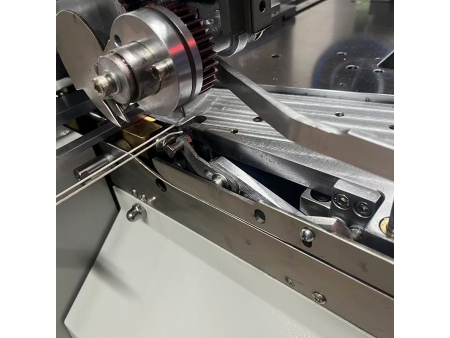

Knotting mechanism

Finished product discharging unit

Specifications

Hang Tag Tying Machine
Model	UM-TL8-K
Speed	3600-6000pcs/h
Cutting method	Cold cut
Weight	450kg
Dimensions	110010001200mm
Power supply	220V, single phase, 50/60Hz
Power	0.75kW
Tag String
String thickness	0.3-1.35mm
String material	Elastic string
Knotted string working length	80-200mm (tail is excluded)
Knotted string tail length	15-20mm
