Printing Aluminum Composite Panel, Printing ACP Panel
Application

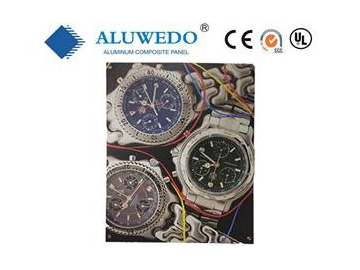

Thanks to its ink absorbency, digital laser printing could be addressed on the surface of our printing aluminum composite panel. Thus, perfect printed products could be made for advertising, exhibition and hall decoration.
Features
Printing aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm,1250mm,1500mm,1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Surface Properties: | |
| Paint Thickness (micron) | 20 |
| Pencil Hardness | >HB |
| Toughness of Coating | 3T |
| Temperature Resistance | -50˚C to +90˚C |
| Impact Strength (kg cm2) | 50 |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Immerse Surface in 2% HC1 for 24hrs without change |
| Alkali Resistance | Immersed surface in 2% NaOH for 24hrs without change |
| Oil Resistance | Immerse Surface in 20# engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength 180˚ | >5 Newton / mm |
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115℃ |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strength | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
Description

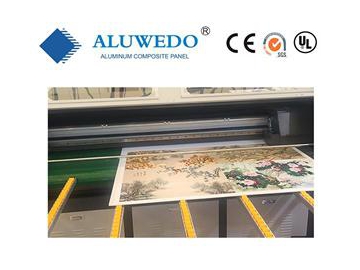

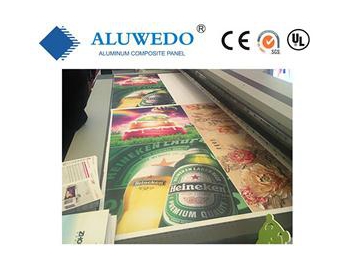

Printing aluminum composite panel is quite suited for UV flatbed printing, which possesses many characteristics, like, smooth and bright surface, high printing definition, and excellent ink absorbency.
Aluwedo is a reliable printing aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality digital printing ACP composite panels with competitive prices.
